ArcmedModel Q-Series -Solvent Caps

SHARE

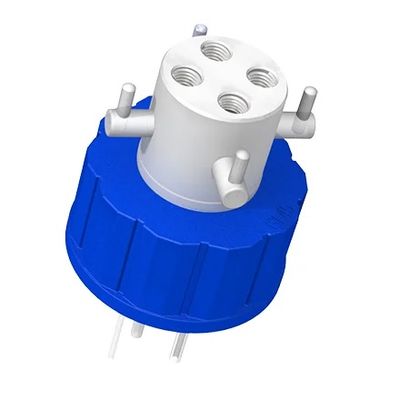

The Omnifit Q-Series is a versatile range of solvent caps with the security of threaded fitting nuts to ensure a leak-free, vapor-tight seal for applications that require repeated connection and disconnection. The anti-twist design ensures no more twisted tubes when the cap is fitted or removed and eliminates the need to disconnect fluid lines before unscrewing the cap. The autoclavable caps utilize a PTFE inner body for superior chemical inertness and reliable seal without the need for additional O-rings.

Most popular related searches
  • Threaded ports accept standard male 1/4”-28 UNF fittings
  • Compatible with GL32, GL38-430, and GL45 bottles
  • Available with two, three, or four connection ports
  • Optional on/off valves, check valves, and filters to enable closed-system pressure equalization, prevent particulate contamination, and reduce chemical evaporation
  • Operating pressures of -10 psi (vacuum sealed) and 20 psi (+ve pressure)
