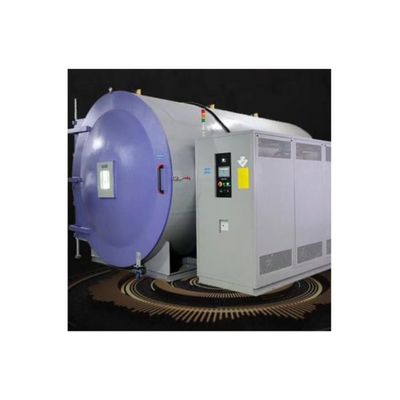

Solvent Degreasing Furnace

• Dissolved tank storage: 250Lor 500 L;
• Dissolved tank load: Each 5 or 10 baskets! 250*300*300);
• Loading MehSod:Lid together with the shelf up, hydraulic forklift removed one time;
• Liquid storage capacity: 1000 L;
• Distillate storage capacity: 1000 L;
• Dissolved distillation tank heating: five water bath heating, the maximum temperatureof70cC;
• The main box material: high-quality corrosion-resistant stainless steel (316L);
• Diaphragm pump flow: 50 L/ min, two sets;
• Solvent separation methods: copper condenser distillation condensation;
• Operation interface: touch screen operation

Solid-liquid extraction, also called leaching, separating component`s ir i a solid mixture with a solvent, such as leaching sugar from sugar beet with dichloro water; digestii lg soybean oil from soybeans with alcoho Ito increase oil yield; using water from traditional Chinese medicine Leaching the active ingredient to make a flow extract is called "leaching" or "leaching". The compound is transferred from one solvent to another by utilizing the difference in solubility or partition coefficient of the compound in two mutually incompatible (or slightly soluble) solvents.

1. Solvent degreasing tank using organic solvents to achieve 100% purity, distillation to avoid the old solvent disgreasing equipment diluted distillation recovery, to avoid solvent degi reasing organic solvent impure shortcomings, improve the quality of degreasing efficiency.
2. Continuous degreasing, high degreasing efficiency, reducing the recovery time of the distillation. The solvent degreasing tank can be directly degreased after the last degreasii ~\g, and the equipment has high utilization efficiency. Solvent degreasing tank, distillation tank using water as the heating medium, hot largetemperature control, reducing the risk of overheating lead to scorch,  burn through; According to many years of experience, high degree of auto motion, basically achieved automation; Distillation, recovery principle  is reasonable, high recovery efficiency, reduce organic solvent waste. scientific and environmental protection;

Equipm ent advantage: After the extraction solven \ degreasing solution. using the principle of distillation. recovering clean. pure organic
solvent; The use of diff erent roles of the sub-tank (solvent degreasing tank, distillation tank, tank), to achieve two objectives: The use of
different roles of the suib-tank (solvent degreasing tank. distillation tank. tank), to achieve two objectives.
