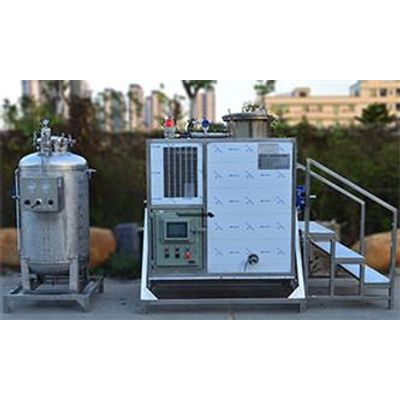

Hongyi - Model Hy250Ex-PLC -Solvent Recovery Equipment
Solvent recovery equipment works with intelligent software control and liquid level control, it’s automatic feeding, 24 hours automatic runing
Most popular related searches
solvent recycling system
solvent recycling
liquid level control
programmable logic controller
cooling system
air cooling system
bottom sludge
organic solvent
level controller
sludge discharge
- Feeding Capacity 250 Liters
- Feeding Auto Feeding System
- Heating Method Indirect heating by heat transfer oil
- Cooling Method Air-cooling
- Slagging-off Mode Dumping slag-off & Underneath slag-off
- Operating Temp 50-210°C
- Voltage, Frequency 380V/50-60Hz (3Ph)
- Power Input, Average 16Kw
- Width*Length*Height 1200*1600*1950 mm
- Net Weight Approx. 600 Kg
Solvent Recycling Machine works by distillation principle
- Feeding the solution into distillation tank.
- Heating up the transfer oil in the distillation tank for heating waste solution, organic solvents boiling up and the liquid turns into gaseous state.
- Gaseous solvents enter the cooling system and condense into liquids
- Separated clean solvents flow into a container or vacuum device.
- After the recycling, clean up the residue.
By distillation and cooling, clean organic solvents are recycled for use, achieving the purpose of recycling and reuse.
- 7 inch Lcd screen
- Programmable Logic Controller
- Liquid level control system
- Auto-feeding system
- 24 hours running continuously
- Air-cooling system
- Bottom sludge discharge valve
- Dumping slag-off
- Vacuum systems(V250 or V500)
- Automatic bottom sludge discharge valve
- 240V, 380V, 415V or 460V
- Teflon coating
- Water-cooling system
