Seiffert - Model KX-1590 -Sonic Belt Tensioning Meter
Unlike the force deflection method which involves applying force to the belt, the Gates Sonic Tension Meter measures belt tension by analyzing the harmonic characteristics of a vibrating belt. Belts, like strings, vibrate at a particular natural frequency based on mass and span length.
Most popular related searches
- Consistent, accurate tension readings every time
- Compact and light
- Easy to use
- LCD screen with black light
- Output readings measurable in hertz, pounds or newtons
- Improved frequency range from 10 – 600 hertz
- 20 memory registers for belt constants
- Seiffert Industrial product number KX-1590
- This device works on any type of synchronous belt drive system, including V-belt drives.

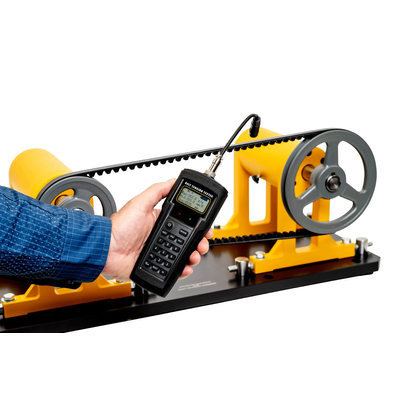

Anyone can operate the Sonic Belt Tension Meter by inputting the belt width and length, and then holding the sensor near the belt to measure its vibration.
It can measure a frequency range of anywhere from 10-600 hertz, and has 20 memory registers for belt constants.
- Weight: 2 lbs
- Dimensions: 12 × 10 × 4 in
