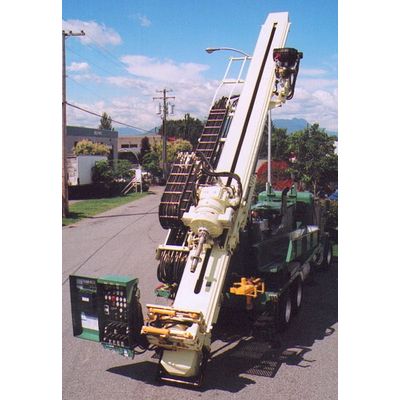

Sonic - Model SDC500-28EA -Truck Angle Mast Drill Rigs
Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level). 24 ft (? m) drill head travel complete with 90 degree tilt. Steel deck complete with nonskid walking surfaces. Hydraulic stabilizer legs (four). Safety decals (English). Fully painted, black and white. Rexroth valves, pumps and controls (where possible). Pull back illuminated control console complete with valving, controls and hinged security cover (vertical). Safety and operation manual (two copies, English). Three hole pump drive box, complete with clutch. 180 gal (US) (? L) hydraulic oil (approximately, standard grade). Deck mounted power unit (250 HP Cat, 24V) complete with enclosure. Hose track assembly for tower hosing. Sonicor 50K drill head.
Most popular related searches
drilling rig
water pump
electric valve
grout plant
control valve
water modeling
pump controller
sonic drilling rig
ultrasonic processor
grout
- Air tank complete with quick disconnect (for blow down)
- Automated Rod Handler with storage (requires rough-in package)
- Auxilliary hydraulic service lines with electrical, valve and hydraulic quick disconnects (2 only)
- Bolting pads (rear side of A-frame)
- Custom colour (non-metallic)
- Deck boxes with locks (1 only)
- Grout plant (double drum) complete with valving and controls)
- Heavy duty breakout table (4 to 12 inch nominal)
- Hydraulic oil type (non-standard)
- Jib hoist complete with 4000 pound winch (top mount, 72 FPM max)
- Lighting package (tower)
- Operator training and on site assistance
- Rod spinner complete with mounting arms
- Rough-in package for Automated Rod Handler
- Secondary oil cooler package
- Side shift (head)
- Pipe guide set (includes 3 standard size inserts)
- Stationary rod rack (for 20 foot rods)
- Tower slide, bumper and controls (48 inch travel)
- Water pump, Bean Model W1122 BCD (37 GPM/1000 PSI)
- Water pump, Bean Model L1122D HSNAR (75 GPM/1000 PSI, abrasion resistant)
- Wiggle tail
- Working platform bridge
