Sontek - Model 10-MHz - Acoustic Doppler Velocimeter
The SonTek 10-MHz ADV (Acoustic Doppler Velocimeter) is a proven, accurate solution for high-precision, 3-axis (3D), velocity measurements in a wide variety of settings from the laboratory to the ocean. ADV performance has been shown to compare favorably with laser Doppler systems costing ten times as much. In addition, the ADV is extremely simple to set up and use. Most users are taking high quality data within minutes of receiving the system.
Features
The SonTek 10-MHz ADV (Acoustic Doppler Velocimeter) is a versatile, high-precision instrument used to measure 3D water velocity. The ADV is used to measure water velocity in a wide range of environments including laboratories, rivers, estuaries, and the ocean.
STANDARD FEATURES
- Self-contained processor in splash-proof or underwater housing
- Sensor mounted on 25 cm stem
- Standard cable length to processor: 10 m
- Analog and serial outputs
OPTIONAL FEATURES
- Sensor mounted on a 100cm cable
- Built-in rechargeable battery for Splash Proof systems
- Compass/Tilt sensor
- Several probe configurations available
- Strain-gage pressure sensor - (0.1%)
- Resonant pressure transducer - (0.01%)
Specification
Sampling Rate 0.1 to 25 Hz
Sampling Volume 0.25 cc

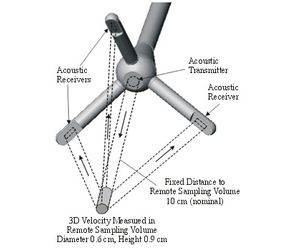

Distance to Sampling Volume 10 cm
Resolution 0.01 cm/s
Programmed Velocity Range 3, 10, 30, 100, 250 cm/s
Accuracy 1% of measured velocity, 0.25 cm/s
Maximum Depth 60 m
Temperature Sensor 0.1°C
Compass/Tilt Sensor — Heading, Pitch, Roll Resolution 0.1°
Compass/Tilt Sensor — Heading Accuracy ±2°
Compass/Tilt Sensor — Pitch, Roll Accuracy ±1°
Input Power 12-24 VDC
Typical Power Consumption 2.5 to 4.0 W Operating | <1mW Sleep
