- SUPPORTED STANDARDS: complies to Sound Intensity-based Sound Power calculation - Discrete points method (ISO 9614-1) and Scanning method (ISO 9614-2)
- UNMATCHED FLEXIBILITY: measurement of additional process parameters like vibration, video and others, everything perfectly synchronized
- SUPPORTED HARDWARE: plug and play support for different intensity probes from all the major manufacturers, integrating full remote control functionality for measurement control
- IEC 61672 CALIBRATED: complete measurement chain of sound intensity solution can be calibrated according to IEC 61672
- QUICK SOUND SOURCE IDENTIFICATION: effortlessly identify noise sources with an easy-to-use interface
- ADAPTED FOR INDUSTRY: no need for the special environment makes it perfect for measuring big chillers, transformers and other large-scale industrial applications
- PHASE CALIBRATION: straightforward, automated phase calibration and correction with a single button click

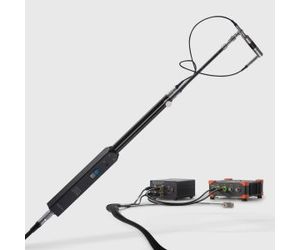

Dewesoft Sound Intensity module offers a complete measurement solution, enabling the customer to use it for precise noise source location or sound power calculation, without the need for any special environment such as reverberation room or anechoic chamber.
Sound power measurement is a universally recognized method especially established to compare devices for their Acoustic properties. Utilizing our fully-fledged and versatile solution, sound power measurements can be conducted regardless of the object of interest`s shape or size with only a few requirements for the space or location of measurement.

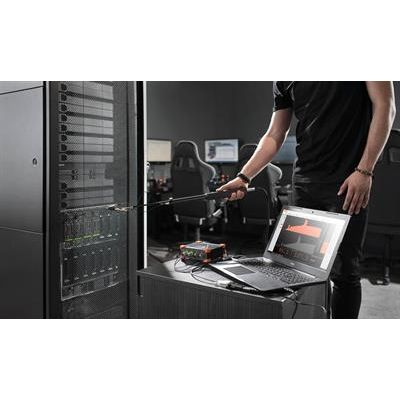

Sound intensity scanning method (9614-2) for Sound power determination offers rapid and fluent measurement procedure. This holds especially true for large devices.

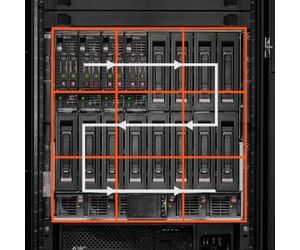

Dewesoft solution shines with a very clear visual control and on-screen guidance in regards to timing and scanning patterns. The most powerful aspect is the support for the buttons on the Sound intensity probe, making it completely operational by a single person. Scanning method is meant to be simple and fast. So that is exactly what we want you to experience.
When more time is available or more detailed approach is necessary, segmentation method (9614-1) is the best possible option. Once an object is measured from all (usually 5) sides, Sound power can be calculated. However, with our solution, it is possible to do a more detailed analysis of the result. The software maintains the levels for each segment and further sub-segmentation is possible to extract additional information about the device under test.

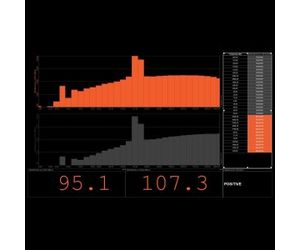

On top of all this, Sound intensity probe buttons are supported for moving between segments and triggering start/stop of the measurement. Accompanied by a beautiful visual control with overlay on top of the object image, our solution gives an intuitive view of the results and key quality parameters of measurement.

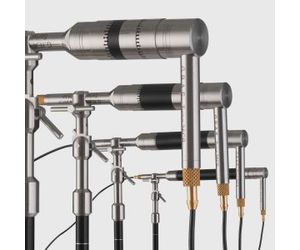

Our software supports a range of intensity probes in their complete functionality, each of them coming with a selection of solid spacers providing corresponding microphone gaps at frequency ranges of interest. We carefully selected the assortment of probes to ensure reliable and swift operation as all supported intensity probes have been designed to switch easily between different microphone spacers. The complete frequency range is thus covered easily and fast.

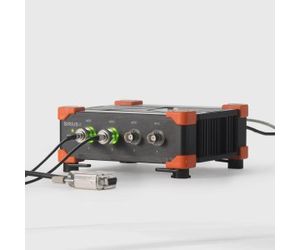

Two additional analog inputs on SIRIUS mini allows you to plug in additional sensors, eg. accelerometers. This allows you to simultaneously measure and display other parameters inside Dewesoft X3 software.
In conjunction with GRAS 12AR power module, we offer a plug and play solution for probes that require 200V polarisation voltage, making it possible to use existing equipment as well.
We are committed to offering the highest usability, therefore our advanced solution is completely portable. SIRIUS mini can simply be powered over USB from a laptop.
Where 200V polarization voltage is required and portability is in question, we offer packages with G.R.A.S. Intensity Power Module Type 12AB that makes our solution adaptable to existing intensity probes while still maintaining “off-grid” portability.
When powered by batteries, the power module is seamlessly integrated into our fully portable Sound intensity measurement chain, ensuring up to 11 hours of battery life.
Modern measurement techniques and solutions all require a way to ensure the quality and compliance of the measurement chain. Dewesoft has recently put special efforts in this area.

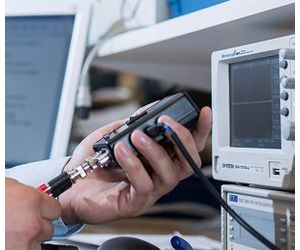

Every Dewesoft SIRIUS DAQ device can thus be calibrated according to IEC 61672-3:2013. Our Sound intensity solution also includes procedures for single frequency pressure accuracy and also Phase calibration of the whole measurement chain using GRAS 51AC Sound Intensity Probe calibrator. In addition, we also offer a complete service of filter calibration according to IEC 61260: 2014 standard.
