SagiCofim - Model SA and SA-LF -Soundproofing Panels

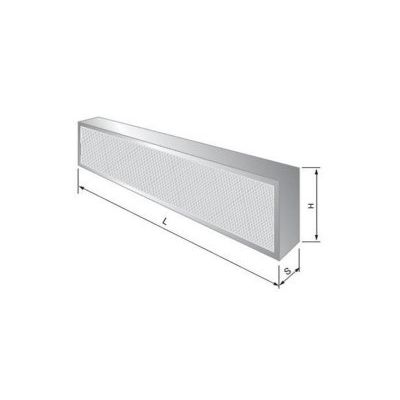

SA and SA-LF soundproofing panels are used in ventilation and air-conditioning systems to effectively reduce fan-generated noise. They are composed of a parallelepiped shape galvanised steel frame, and contain sound-absorbing mineral fibre protected by a glass veil.

The mineral fibre used has a high noise absorption coefficient and is therefore very effective at reducing noise. There are two different versions of soundproofing panels:

• SA: galvanised steel frame with sound-absorbing element in mineral fibre protected by a veil of reinforced glass;
• SA-LF: like the SA but finished with a perforated galvanised steel plate for further protection of the sound-absorbing element.

SA and SA-LF soundproofing panels are available in different thicknesses, 50, 100, 200 and 300mm and in various lengths and heights to meet all kinds of requirements and applications.

SA and SA-LF soundproofing panels are used in civil and industrial ventilation and air-conditioning systems; they have highly effective noise abatement properties for air in all types of application. Their sturdy construction means they are suitable for heavy-duty use.
