Space Frame Cone Head

SHARE

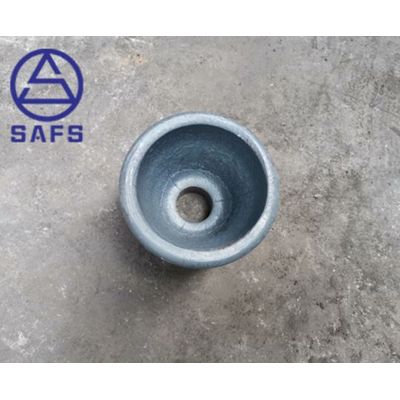

Cones/blanking plate are the specially formed pieces that are welded to the pipe ends for fixing the bolts. Cones shall be of the same quality material with the pipes and shall be formed either by milling or hot forging methods in conformity with GB/T1591-2008 standards and shall be coated with the paint layer.

Most popular related searches
  • The thickness of cones shall be standard to ensure it is strong enough to bear the loads transfer through steel pipes and the bolt balls
  • The welding process test should be carried out first for the weld work of cone and steel pipe. After passing the weld technical test, a large amount of cone welding is allowed.
  • Usually the cone is difficult to be hot dip galvanization, thermal zinc spraying is acceptable.
  • it`s necessary to do UT inspection for the weld work of cones.
