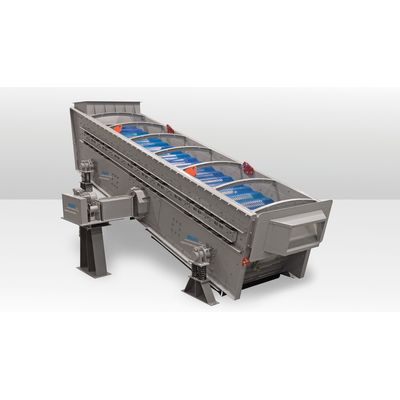

Spaleck - Flip-Flow Screening Machines
Flip-Flow screening machines are designed for efficient screening of difficult,sticky or wet materials with separation cuts of 0.2 to approx. 50 mm. Being innovation leader 4.0 of the screening technology, we produce screening machines that you can still use for efficient recycling for decades to come. With your new SPALECK Flip-Flow screener, you always remain with the course of time.
TOP PERFORMING SCREENS for your processing
Maximum screening quality, the most simple operation
Flip-Flow screening machines must be reliable and powerful while processing waste. With our screening machines for fine materials, you optimize the processing of your screening material. The machine performance is a guarantee for the strong performance of your entire recycling equipment.
Manufacturers of Flip-Flow screening machines
WORLD-CLASS technology for economically screening
Worldwide, SPALECK Flip-Flow screening machines set the benchmark for efficiency, reliability and effectiveness.
Flip-Flop screening machines
Performance, reliability, return on investment
If optimum screening performance, quality and the screening result are important for you then the SPALECK Flip-Flow screening technology is just right for you. In the recycling business Flip-Flow screens are also called Flip-Flop screeners.
If you are interested, we would be pleased to organize a tour at a leading recycling company that counts on SPALECK. Please contact us.
Application of Flip-Flow Screens
Flip-Flow screening machines (also called Flip-Flop screeners) are designed for efficient screening of difficult, sticky or wet materials with separation cuts of 0.2 to approx. 50 mm.
MATERIALS FOR FLIP-FLOW SCREENERS
Dampening, wet and dry materials of inhomogeneous products such as recycled materials, building materials, compost, waste wood, …
Flip-Flow Screen Working Principle
The base frame is agitated by means of shaft and unbalance motor drive. The vibration is passed to the dynamic frame via thrust rubbers.
Fixed screening mats between the dynamic and the base frame are clamped and fl exed by the two vibrating frames. The modular and compact construction of the SPALECK Flip-Flow-Screen ensures a wide acceptance for many different applications.
The easy assembly respectively changing of the screening mats, the extension to a multi-deck version and the dynamic stroke adaptation are further features.
The vibrating cover can be opened without tools. This ensures a rapid and easy accessibility of the screening mats. The relative movement of both screening frames creates a “trampoline effect” for the screening mats. The advantages of this effect are:
- High acceleration up to 50g in the screening mats
- Loosening-up of the product
- Non blinding screening mats – less contamination
- Compact and modular construction
- Single- or multi-deck execution
- Dynamic wear resistant screening mats allow an efficient material flow – screwless mounted (fast changeover).
- The high acceleration on the screening mats ensures a self-cleaning effect.
- Infinite adjustment of the vibrating parameters to match changing product characteristics / qualities
- Low operating and maintenance costs
- Perfect cooperation with other recycling machines such as feeders, crushers, hoppers, eddy currents, etc.
