Specac - Pucks for Quest | Single Reflection ATR Accessory
Quest`s system of interchangeable pucks is what gives this ATR its versatility. Choose between different crystal, puck style, and heating options here.
- Interchangeable crystal pucks: Easily switch ATR crystals and sampling plate options without use of tools.
- Range of internal reflection elements (IRE) available: Choose from Diamond, ZnSe, Si and Ge
- Heated puck option: For experiments from ambient to 110 °C
- Liquid and Flat puck styles: Maximum adaptability to your sample type
Various interchangeable ATR crystal pucks are available for the Quest.
- High throughput diamond
- Extended wavelength diamond (with far-IR capability)
- Zinc Selenide
- Germanium
- Silicon
- Specular Reflectance

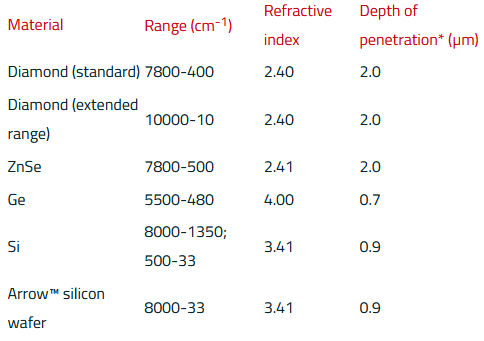

*at 1000 cm-1. Calculated for a 45° angle of incidence and a sample refractive index of 1.5. Each puck is made from hardened stainless-steel and locates magnetically on the accessory, making them easily interchangeable without requiring additional alignment. Heated puck NEW! The Heated Puck enables high temperature measurements up to 110 °C, perfect for analysis of phase changes in soaps, food stuffs, and other multi-phase systems. A highly sensitive 4-wire RTD sensor is used for temperature measurement, while control is provided by a compact USB interface and a free PC-based software app. The heated puck is available with either an extended range diamond ATR crystal or a ZnSe crystal.
Pucks for easy solid sampling
The standard puck features a flat surface with the IRE slightly protruding ensuring good contact with your sample. This puck works extremely well for solids, powders and viscous liquids.
Pucks for easy liquid sampling
Liquid pucks have a raised surface around the crystal, forming a bowl to confine samples on the crystal. This is useful for samples with low viscosity or prone to evaporation. The bowl has a volume of approximately 100 µL.
