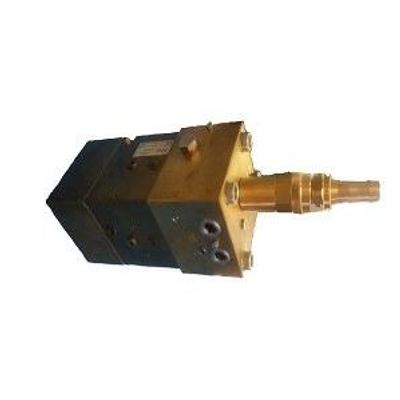

Neròn - Model HPX 808 -Special High Pressure Subsea Pumps

• OIL FLOW : Up to 80 l/m with flow limiting valve e unloader
• RISK : None, Safety devices adopted both oil and water side
• MATERIAL : Brass, Bronze, Stainless steel, Special seals
• PISTON MATERIAL : Stainless steel
• DIMENSION : 245x115x130 mm
• WEIGHT : 18 Kg
• INSTALLATION : On one side of the pump
• INLET AND OUTLET OIL PORT : ½” BSP F
• WATER INLET PORT : ½” BSP F
• WATER OUTPUT PORT : SSK; 1/4” BSP F

• Technically unbeatable
• Full power and trust
• Compact
• Easy to carry
• Simple installation
• Connect and use
• Installation in any position
• Safety devices adopted
• Low noise and low vibrations
• Running in any environment conditions
• Water cost and volume saving
• Low maintenance required
• Long life thanks to the oil self-lubrication
• Anti explosion, Anti sparks, Anti electric shock
• Subsea use
• Working up to 5000 mts from sea level and/or in exterme conditions
• Unique for pipe line inspection

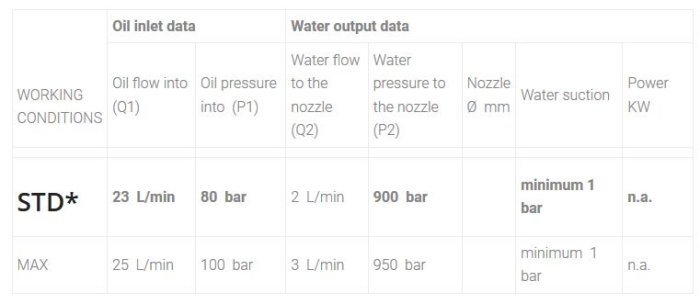

*STD Standard calibration done by Neròn. Different or adjusted calibration done upon customer’s request.  The above stated values are subject to variations depending on the oil temperature of the hydraulic system.

• Brass water filter, hose barb. Flow and pressure limiting valve  (on request)
