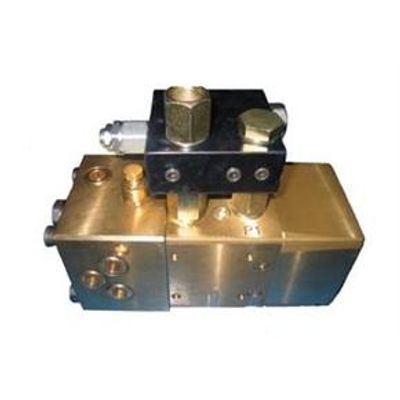

Neròn - Model HPX 812 -Special High Pressure Subsea Pumps
FromNeron Pumps
Features : FEEDING : Discharge. CALIBRATION : Unloader valve. SECONDARY FLUID : Fresh water, SALT WATER, Glycole, Chemicals. WATER TEMPERATURE : Cold or hot water up to 60° C. OIL TEMPERATURE : Max 70 °C.
Most popular related searches
high-pressure pump
flow limiting valve
safety system
flow limiter
pipe lining
water cost
water filter
high-pressure feed pump
pipe inspection
secondary water
- OIL FLOW : Up to 80 l/m with flow limiting valve unloader
- RISK : None, Safety devices adopted both oil and water side
- MATERIAL : Brass, Bronze, Stainless steel, Special seals
- PISTON MATERIAL : Stainless steel
- DIMENSION : 245x115x130 mm
- WEIGHT : 18 Kg
- INSTALLATION : On one sid of the pump
- INLET AND OUTLET OIL PORT : ½” BSP F
- WATER INLET PORT : ½” BSP F
- WATER OUTPUT PORT : SSK; 1/4” BSP F
- Technically unbeatable
- Full power and trust
- Compact
- Easy to carry
- Simple installation
- Connect and use
- Installation in any position
- Safety devices adopted
- Low noice and low vibrations
- Running in any environment conditions
- Water cost and volume saving
- Low maintenance required
- Long life thanks to the oil self-lubrication
- Anti explosion, Anti sparks, Anti electric shock
- Subsea use
- Working up to 5000 mts from sea level and/or in exterme conditions
- Ideal for pipe line inspection

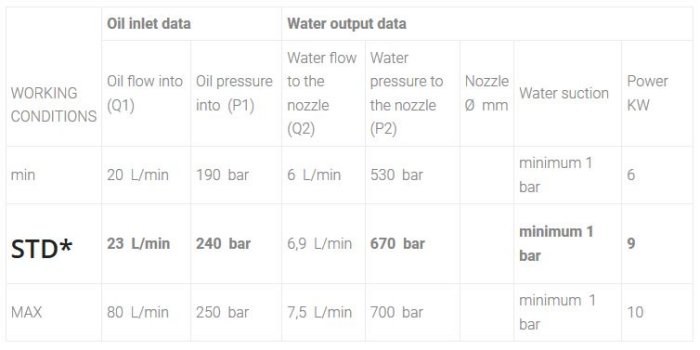

*STD Standard calibration done by Neròn. Different or adjusted calibration done upon customer’s request. The above stated values are subject to variations depending on the oil temperature of the hydraulic system.
- Brass water filter, Hose barb. Flow and pressure limiting valve (on request)
