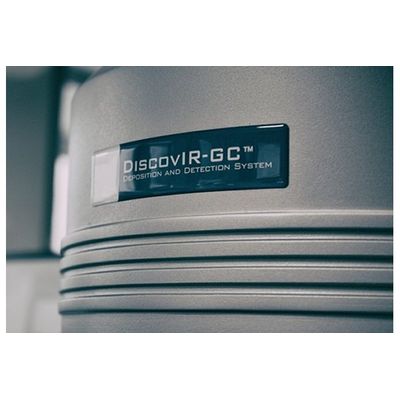

Spectra Analysis - Model DISCOVIR-GC -Infrared Detection System

FromSpectra Analysis Instruments, Inc.

SHARE

The New Spectra Analysis DiscovIR System is the perfect solution when identifying the components in a complex mixture. Infrared spectroscopy provides each compound’s unique fingerprint, making it quick and easy to identify each peak by comparison to the extensive solid phase IR libraries. The DiscovIR system is particularly useful in identifying structural isomers, which can be a challenging area for Mass Spectrometry.

Most popular related searches

digital temperature controller

infrared spectroscopy

mass spectrometry

analysis system

vacuum sensor controller

Micro-Deposition Improves Analysis

DiscovIR’s unique temperature controlled, vacuum deposition method ensures that results are accurate and reproducible. Eluted peaks are first deposited in a film onto a rotating IR-transparent disc. The disk rotates the concentrated spot into the infrared beam and the spectrum is collected.

Controlled Substances
Amphetamines
Diastereomers
Ephedrine/Pseudoephedrine
Trace Analysis
Fentanyl Analogs
Cathinones
Phenethylamines
Unattended overnight options available
Couples to Mass spec

Micro-Deposition on Cryogenically-Cooled IR-transparent disc
Solid phase transmission FTIR spectra with high resolution
Runs stand-alone or in parallel with GC-MS

Operating Principle : Direct deposition of column eluent on
cryogenically-cooled ZnSe sample disc
Detection Method : Built-in FTIR
IR Detector : 0.1 x 0.1 mm MCT
IR Range : 4000–700 Wavenumbers
Resolution : 4 or 8 cm-1
Data Collection : Real-time, with post-run rescan
Spectrum Type : Transmittance through disc and solid-phase sample
Disc Capacity : About 20 hours of chromatography
Disc Temperature Control : -100 to –30°C; ambient to 100°C
Unattended operation : 12 hours; Autosampler-compatible
