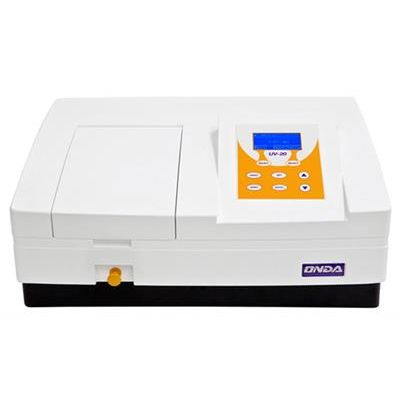

OndaModel UV-20 (UV/Vis) -Spectrophotometer

SHARE

UV-Visible Spectrophotometer, spectral range 200-1000 nm. Automatic Goto Lambda Wavelength Setting. Single beam optical system, 4 nm bandwidth, spectral resolution 0,1 nm, wavelength accuracy ± 1 nm, wavelenghts accuracy  ± 0.5 nm , photometric accuracy ± 0.5% T, photometric precision ± 0.3% T. Photometric Range 0 ... 200% T, -0.3 ... 3 Abs, 0 ... 9999 Conc. Diffuse Light

Most popular related searches
Operating Modes: Transmittance, Absorbance, Energy, Working Curve Method, Coefficient Method.
The display shows up to 50 lines of data. Saving in memory of 200 data sets and up to 200 work curves.

Recovering data in case of power failure. Tungsten-halogen lamp and Deuterio Lamp. 1200 lines/mm monochromator. Silicon Photodiode Detector. 128x64 pixel LCD display. USB door.
Dimensions (W x H x D): 490 x 387 x 190 mm. Weight: 14 Kg Power: AC 110-225 V, 50-60 Hz.
Basic PC Software provided for complete control of the spectrophotometer from a PC, including methods: Absorbance, Transmittance, Working curveCoefficient Method, Kinetic, Multi-Lambda.

Suit of cells support sled for 4 cuvettes of 10 mm, 2 quartz glass square cuvettes 10 mm, 4 special optical glass square cuvettes 10 mm, power cord EU, Basic Software, dust cover.
