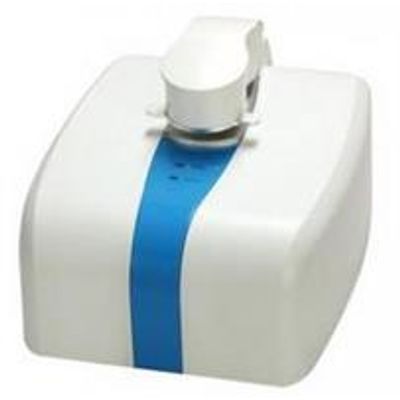

Onlab - Model MiUV-1 -Spectrophotometer

• Automatically calculate and display 260nm and 280nm absorbance, ratio, and concentration.

Protein Test:

• Test protein concentration, automatically adjust optical path, don’t need to dilute the sample.
• Test range: 0.05－100mg/ul

3Wavelength Scan:

• 200-850nm wavelength scan, display the absorption curve.
• cells and microorganisms
• Test fluorescent protein absorbance

1. Only need micro volume sample, 0.5 ul to 2ul without dilution.
2. Fast test speed without reservation. One sample is completed in a short time.
3. Longer optical life, intelligent identify, no operation in 5 minutes and will be automatically closed light source in order to prolong service life
4. When users press the test button, it will be automatically test in whole process.
5. Graphics software operation is more intuitive, the result can be directly output to EXCEL, to facilitate data view and analysis

• ample volume 0.5-2 ul
• Light Source Xenon flash lamp
• Detector 3864 lines CCD
• Photometric Bandwidth: 3 nm(FWHM at Hg 546nm)
• Optical Pathlength 0.2mm( high concentration), 1.0mm( common concentration)
• Wavelength Range 200-850 nm
• Wavelength Accuracy ±1 nm
• Photometric Range 0.02 - 75(equivalent 10mm）
• Photometric Accuracy ±0.003Abs, ±1%T(0.76A at 350nm)
• Nucleic acid detection range 4ng/ul-5000ng/ul(dsDNA)
• Test time 5 Seconds
• Sample Pedestal Material Silica fiber and high rigid aluminum
• Operating Voltage 24V DC
• Operating power consumption 12-18w
• Data and Control Interface USB
• Software Platform Windows XP(32), Windows 7(32)
• Dimensions W200 x D260 x H150mm
• Weight 2.5kg
