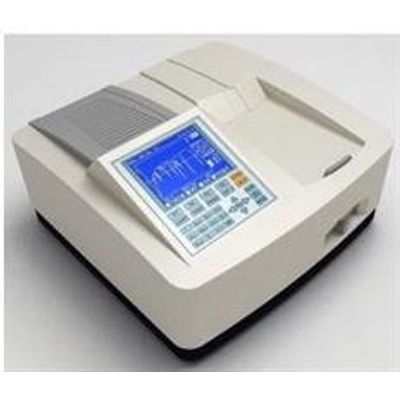

Onlab - Model EU-2800R/EU-2800RA/EU-2800RS -Spectrophotometer

FromShanghai Onlab Instruments Co.,Ltd

SHARE

The excellent optical and electric SYSTEM. Low noise and low stray light. Large LCD display(320*240 Dots),can display curve. High quality grating,detector and lamps. Data and Curve can be stored in real-time. Auto setting WL,Auto blank. Easy to change Pre-aligned lamps. Reinforced baseboard and bracket assures durability.

Most popular related searches

spectrophotometer

Wavelength Rangefrom 190 to 1100 nm
Spectral bandwidth: 1.8nm for EU-2800R, 1.0nm for EU-2800RA, 0.5/1/2/4/5 nm Variable for EU-2800RS
Optical system: Split beam,Blazed Holographic Grating(1200 lines/mm)
Wavelength Accuracy: ±0.3nm
Wavelength repeatability: <=0.2nm
Wavelength setting: Auto,resolution 0.1nm
Photometric range:0-200%T,-0.3-3A,0-9999C
Photometric repeatability: ±0.002A(0-0.5A),±0.003A(0.5-1A),±0.3%T(0-100%T);
Stray light:0.05%T(220/360nm)
Scan Speed: High,medium,low.Max. 3000nm/minute
Baseline flatness:±0.0015A
Stability: ±0.002A/H(500nm,0A)
Noise:<=0.2%T/3min(250/500nm,0%T);<=0.5%T/3Min(250/500nm,100%T)
Sample Compartment: Accommodate 5-100mm Pathlength Cuvette
Detector:Silicon Photodiode
Lamps:Tungsten Lamp & Deuterium Lamp(Pre-aligned)
Display: Graphic LCD (320*240 Dots)
Keypad: 30-key Membrance Keypad
Output Port:USB PORT & RS232 PORT
Printer: Mini Serial Printer;PC Printer
Power Requirement:AC90-250V,50/60HZ
Dimensions(W*D*H):545*468*245mm for EU-2800R, 635*515*255mm for EU-2800RA, 635*515*255mm for EU-2800RS
Weight: 20kg for EU-2800R,26kg for EU-2800RA,28kg for EU-2800RS
