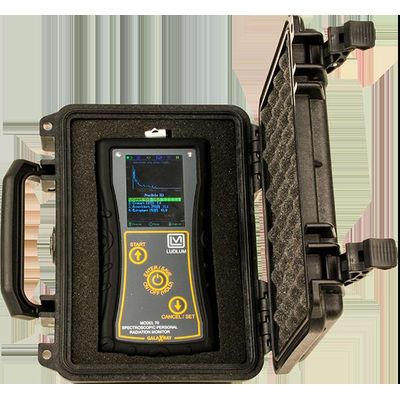

Ludlum - Model 70 Series -Spectroscopic Personal Radiation Detector
The Ludlum Model 70 Series are high resolution CZT-type detectors that deliver unparalleled performance in express radionuclide identification and radiation dose assessment from low to moderate-high levels. Continuous dose rate monitoring and recording enables the user to be instantly informed about radiation exposure and to carefully analyze radiation dose risks by exploring the dose rate recorded charts. Each instrument is accompanied by GalaxRayWiz software, a powerful tool which communicates with the device, analyzes gamma-spectra and dose-rate time profiles accumulation of 14 hours. Collected data can be easily transferred via USB or Wi-Fi.
Most popular related searches
personal radiation
radiation dose
portable gamma spectrometer
personal radiation monitoring
personal radiation detection
gamma spectrometer
radiation exposure
radionuclide identification
radiation meter
radiation detection system
- Handheld Gamma Spectrometer
- Mobile Phone Sized
- Three Button Operation
- Radiation Dose Assessment
- Dose Rate Time Profile Recording
- Express Nuclide Identification
- One Thousand Gamma-Spectra Storage
- Temperature Stabilized
- Complies with ANSI 42.48-2018
- Energy Resolution 1.8 - 2.5% at 662 keV
- Dose Rate Range 0.01 µSv/hr to 30 mSv/hr
- Dose Rate Accuracy ± 30% (0.1 µSv/hr to 100 µSv/hr)
- Neutron Sensitivity ≈ 2.4 cps/nv
- Nuclide ID Over-Range Dose Rate 0.5 mSv/hr
- Preset Time 86,400 s
- Display LCD 7.1 cm (2.8 in.), 240 x 320 pixels, backlight
- Alarms Audio (~85 dB), audio jack, vibrator, LED operations: 3-button keyboard
- Data Storage Up to 1000 spectra and up to 24 hours of dose rate time records
- Data Transfer via USB and Wi-Fi
- Power Lithium-ion rechargeable battery, 3.7 V 5200 mAh
- Battery Life With Wi-Fi on and back-light on: Up to 14 hours
- With Wi-Fi off and back-light on: Up to 26 hours
- Charge Time 4 - 5 hours, with battery indicator on display
- Temperature Range -10 to 50 °C (-4 to 122 °F)
