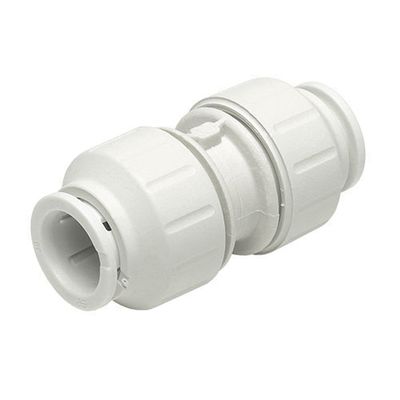

Speedfit - Equal Straight
Push-fit plastic fitting for the connection of plastic and copper pipe. Designed, manufactured and assembled in the UK by John Guest Speedfit. Simply push the fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. Should the need arise to demount the connection unlock the nut and push the collet towards the body of the fitting and pull the pipe to release. The fitting ensures an easier working environment in confined places and removes the need for hot works on site. Installation can be reduced by around 40% against traditional fixing methods. Note: With all plastic pipes the relevant manufacturer’s pipe insert is required.
- Push-fit and demountable connections
- Suitable for hot and cold water and central heating systems
- Grip and Seal connection
- Lead free and non toxic
- No scale build up and Corrosion Free
- BSI and WRAS approved
echnical Checklist – Plumbing and Heating Fittings – UK Sizes
NOTE: This checklist refers exclusively to fittings and accessories from our range of push-fit products for Plumbing and Heating Systems. Other fittings, valves, tube and ancillary products have their own Technical Specification.
Fittings and pipe should be kept clean and undamaged before use.
Sizes 10mm to 28mm diameter.
Pipes Speedfit fittings can be used with:
– Copper pipe to BS EN 1057
– Speedfit Barrier Pipe to BS7291.
Speedfit fittings cannot be used on stainless steel pipe.
Standards Speedfit products are designed and manufactured under a fully integrated system assessed by B.S.I. to BS EN ISO9001. They are approved by the Water Regulations Advisory Scheme and BBA. Speedfit ‘PEM’, ‘PSE’ and ‘SFM’ Fittings and Speedfit Barrier Pipe are kitemarked to BS7291 Parts 1, 2 and 3, Class S (Licence No. KM39767).
Applications
– Mains fed and indirect cold water systems
– Vented and unvented hot water systems
– Vented and sealed central heating systems
