SpeedSeal - Foot and Track

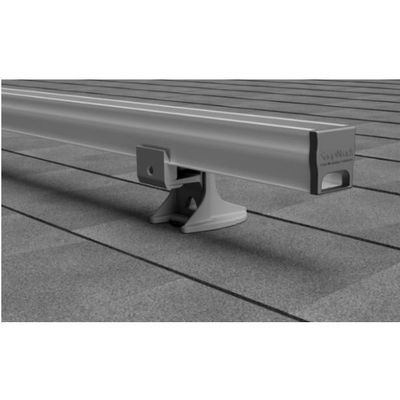

The new SpeedSeal™ Foot and SpeedSeal™ Track speeds the installation process by allowing installers to lag straight to a structural member with no in-between components, while eliminating damage to shingles from the installation process.The simple install process consists of locating a rafter, filling the sealant cavity and securing to the roof. The SpeedSeal™ Technology compresses sealant into shingle surfaces and lag hole, as the SpeedSeal™ Foot or SpeedSeal™ Track is secured to the rafter. SpeedSeal technology saves installers time on the roof with less parts and less tools, while maintaining the integrity of the shingles.
Most popular related searches
- Innovative design incorporates flashing reliability into a single roof attachment
- Sealing cavity with compressible barrier secures sealant in place & fills voids
- Sealant is compressed into cavity and lag hole as attachment is secured to rafter creating lasting seal
- Maintains the integrity of the roof by eliminating the disruption of shingles – no more pry bar.
- Lag straight to a structural member, no in-between components such as flashings or bases – simply locate rafter, fill sealant cavity & secure to roof.
- Less Time. Less Parts. Less Tools
Materials
- Structural Aluminum with stainless steel hardware
- Mill finish aluminum with optional black powder coat
- 0 – 190 mph Wind (ASCE 7-10 & 7-16)
- 0 – 120 psf Snow (ASCE 7-10 & 7-16)
- 10 – 90 degrees
- Miami-Dade NOA No: 20-1104.01
- Passes UL 2582 Wind Driven Rain Test & ASTM E2140 Water Column Standards
