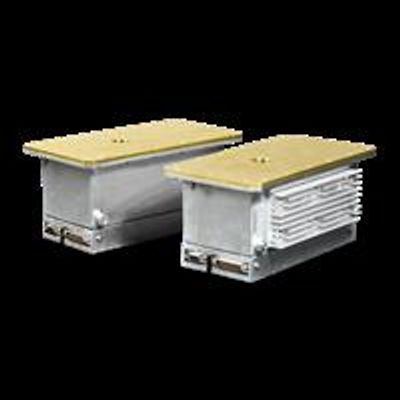

Spellman - Model XRB011 -Monoblock X-Ray Generators

Typical applications:

• Medical X-Ray: Fluoroscopy and Radiography for Extremities, Specimen Radiography.
• Pulsed Fluoroscopy (contact Spellman sales)
• Industrial X-Ray: Component inspection and Non-Destructive Testing

• Integrated HV Supply, Filament Supply, X-Ray Tube, Beam Port and Control Electronics
• Compact & Lightweight
• Can be Mounted in Any Physical Orientation
• Analog or Digital Control Interface

X-Ray Characteristics:

Tube Type:  Micro focus tube

Focal Spot:  33µm Nominal, 50µm max. (IEC 336)

Beam Filter:  Ultem 0.060. (1.5mm)

Oil 0.175. (4.4mm)

Beam Geometry:  Symmetrical 40° cone

Input Voltage:

20W: 24Vdc ±1V @ 2.5A

50W: 24Vdc ±1V @ 4A

X-Ray Tube Voltage:

Nominal X-Ray tube voltage is adjustable between 35kV to 80kV

X-Ray Tube Current:

20W: 0-250µA over specified tube voltage range

50W: 0-700µA over specified tube voltage range

X-Ray Tube Power:

20/50W, maximum continuous

Voltage Regulation:

Line: ±0.5% for a ±1V change of nominal input line voltage

Load: ±0.1% for a load change of 25µA to maximum rated current

Voltage Accuracy:

Voltage measured across the X-Ray tube is within ±1% of the programmed value

Voltage Risetime:

Ramp time shall be =250ms from 10% to 90% of maximum rated output voltage

Voltage Temperature Coefficient:

≤100ppm/°C

Temperature Stability:

≤.01% per 8 hours after a 1/2 hour warmup

Over Temperature Fault:

Indicates that the internal oil temperature has exceeded 65° C. The high voltage output will be disabled. Toggling the X-Ray ON Command OFF and ON will reset the fault.

Over Voltage Fault:

An overvoltage (OV) fault is detected when the output voltage exceeds 82kV. The high voltage output will be disabled. Toggling the X-Ray ON Command OFF and ON will reset the fault.

Voltage Ripple:

1% peak to peak

Current Regulation:

Line: ±0.5% for a ±1V change of nominal input line voltage

Load: ±0.5% for a voltage change of 35kV to 80kV

Current Accuracy:

Current measured through the X-Ray tube is within ±2.5% of the programmed value

Over Current Fault:

An overcurrent (OC) fault is detected when the emission current exceeds 275µA (20W model) and 710µA (50W model). Toggling the X-Ray ON Command OFF and ON will reset the fault.

Arc Intervention:

One arc fault. The high voltage output will be disabled. Toggling the X-Ray ON command OFF and ON will reset the fault.

Filament Configuration:

Internal high frequency AC filament drive with closed loop filament emission control

Analog Interface:

Ground referenced 10kV/V, 25µA/V (20W model) and 70µA/V (50W model) for programming and moni­toring analog interface signals. Open collector, active low digital signal interface. Internal jumper is needed to be configured for analog interface.

Digital Interface:

RS-232: standard

Ethernet: optional

Control Software:

A demo GUI is available for engineering evaluations Interlock/Signals: A hardware interlock functions in both analog and digital programming modes.

Operating Temperature:

0°C to +40°C

Storage Temperature:

-20°C to +70°C

Humidity:

10% to 95% relative humidity, non-condensing

Cooling:

50W option: Customer provided, external cooling fan, 50cfm, minimum

Analog Interface and Input Line Connector:

25 pin D connector, male

Digital Interface Connector:

RS-232: 9 pin D connector, female

Ethernet: RJ45 connector

Grounding Point:

6-32 ground stud provided on chassis

Dimensions:

20W: 5.81"W X 5.0"H X 10.81"D (147.57mm X 127mm X 274.57mm)

50W: 6.00"W X 5.0"H X 10.81"D (152.4mm X 127mm X 274.57mm)

Weight:

20W: 18lbs (8.165kg)

50W: 20lbs (9.072kg)

Orientation:

Can be mounted in any orientation.

X-Ray Leakage:

Less than 1mR/hr at 1 meter

Regulatory Approvals:

Compliant to EMC 60601-1-2. UL/CUL recognized file E242584. CE to EN 61010-1 for Non-Medical Applications.
