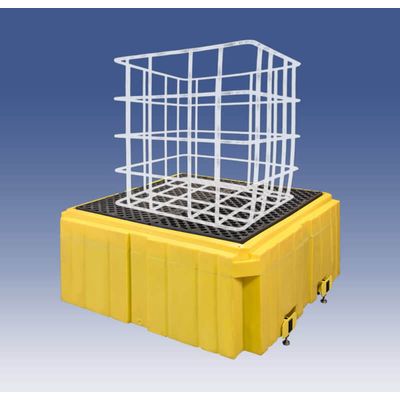

Scaletron IBC - Model 4042-63 -Spill Containment Tote Scale
The Model 4042-63 IBC Spill Containment IBC Tote Scale is designed for weighing tote bins up to 63″ x 63″ and offers a net capacity of up to 8,000 lbs. The containment basin holds 365 gallons. Featuring corrosion resistant construction and a four (4) load cell design, the scale base is ideal for high capacity applications requiring frequent on/off loading of containers and meets secondary spill containment requirements of government agencies. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. PATENTED – MADE IN USA. The Ideal Containment Solution for Weighing Applications Requiring Large Volume Spill Protection.
Most popular related searches
spill containment
secondary spill containment
spill containment scale
spill containment basin
IBC spill containment
load cell
multi-channel controller
container scale
IBC spill
epoxy coating
- Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with polyethylene deck and containment basin for use in harsh environments
- Accommodates off-center loads – totes can be placed anywhere on the containment platform and still obtain an accurate reading
- Four (4) NTEP stainless steel shear beam, temperature compensated load cells with stainless steel leveling feet
- Load cells are mounted outside of spill containment basin to eliminate damage due to chemical spills
- All hardware is stainless steel to prevent corrosion
- Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
- 20 ft. of 4 conductor wire cable
- AccuPro 1000 Digital Controller with one or 2 channels, 4 button keypad and optional 4-20 mA output signal – scale or loop powered
- AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
- AccuPro 6000 Digital Controller with one or 2 channels, touch screen and 4-20 mA output signal – scale powered
- AccuPro 7000 Digital Controller with up to 4 channels, touch screen and 4-20 mA output signal – scale powered
- High and low level set points
- 0-5V or 0-10V output signal
- Audible alarm
- Modbus communication
- Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable
Scale is designed to accurately measure weight of:
- Alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
- Accurately weighs the net remaining chemical that has NOT been dispensed including splashes and spills that are contained within basin
- Meets secondary spill containment requirements by the EPA, OSHA, and other local agencies
- Standard base size: 63″x63″ – other sizes available
- Net capacity: Up to 8,000 lbs. (3629 kg) – other capacities available
- Containment capacity: 365 gal.
- High accuracy of ±0.1%
- Single or multi-channel controllers with easy readability to 0.1 lb. (kg)
- Readout in pounds, kilograms, gallons or liters
