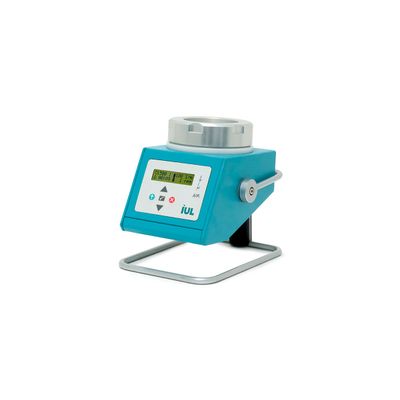

Spin Air - Microbial Air Sampler
Microbial air contamination monitoring is a key process in facilities with special air cleanliness needs. Spin Air samplers give users a compact, portable, simple solution to air sampling. Accuracy and precision-enhancing Spin technology enables Spin Air samplers to outperform the accuracy of other air sampling systems.
Pharmaceuticals, medical devices, food, and cosmetic manufacturers and healthcare facilities all benefit from the use of Spin Air samplers to assess airborne bacterial and fungal bioburden.
IUL’s air samplers are very compact and designed for easy transportation to enable sampling to take place anywhere needed. Operating these is very simple, a Petri dish is inserted and the device’s lid is screwed in place. Next, accurate volumes of air are sampled by forcing them towards the Petri plate’s agar surface. After incubation, colony counting enables evaluating microbial air quality.
SPIN AIR
Spin technology for precision, accuracy and resolution enhancement.
Full sampling traceability.
LIMS connectivity.
Use a barcode scanner for quick sample and operator identification.
Allows for duplicate sampling when connected to a Mate unit.
SPIN AIR MATE
Spin, technology for precision, accuracy and resolution enhancement.
All the advantages of the Spin Air main unit to which it must be connected to operate.
SPIN AIR BASIC
Spin, technology for precision, accuracy and resolution enhancement.
Very affordable.
BASIC AIR
Regular static Andersen air sampler.
Extremely friendly to low budgets.
Unrivalled Spin technology: IUL’s Spin technology enhances air sampling accuracy, precision and resolution even when sampling in medium to highly contaminated environments (particularly useful for GMP Grade C and D cleanrooms and regular environment sampling).
This sampling technology uses 100% of the Petri plate agar surface to plate microorganisms (only 5% is used in other air samplers). This improves data statistical significance greatly, avoiding the use of colony count correction tables.
Easy sampling: These air samplers are compact and portable, they can be attached to a tripod for adequate sampling direction. If airflow problems arise, a loud alarm goes off and sampling is aborted. A handy countdown function avoids operator interference with results.
Regulatory compliance: Spin Air sampler complies with USP 797 & 1116 regulations. DQ, IQ, and OQ documentation is supplied with the device.
Full traceability: LIMS friendly data records, printer connectivity, and barcode scanner compatibility all enable full sampling traceability.
- Air flow: 100 L/m (90 mm plate) – 60 L/m (Rodac plate). – Controlled by microprocessor
- Air Total Volume: 10–9900 L
- Delay to Start: 60 minutes, divided in seconds
- Rotation Speed: 0, 1, 2, 3 and 4 rpm
- Tripod thread: At the bottom
- Communication: RS232C to PC/Printer
- Format Communication: XML, CSV
- Bar-code connection: With IUL barcode device
- Switching adapter: 100-240V AC 50/60 Hz 12V CC 15W
- Battery Pack: Ni metal Hydride 7.2V
- Range: 8 hours full charge (without Mate) – decreases with age
- Weight: 1.7 kg Spin Air – 1.3 kg Spin Air Mate- 2.2 kg Carrying case
Description: Cat. No.
- SPIN AIR – Air sampler for 90 mm Petri dishes with carrying case and switching adapter: 90005500
- SPIN AIR MATE – Air sampler for 90 mm Petri dishes with carrying case and connection cable (needs compulsory a Spin Air main unit): 90005502
