Ludwig - Spiral Gabiobox System

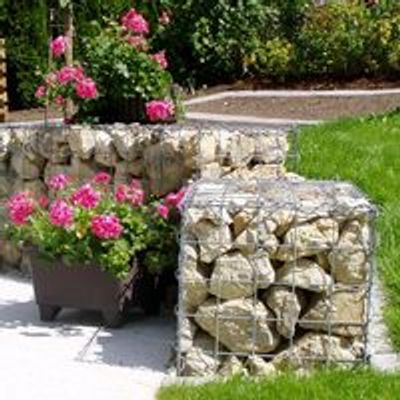

The gabiobox-Spiral system consists of individual wire mesh mats joined together with spirals. For stability, additional distance pieces are incorporated into the interior. This system is used for the "easy" areas of application. The flexibility and individuality of the gabiobox-Spiral system are its most important features. The mats can be shortened individually as they can be connected to the next element again quickly and simply. Due to their decorative effect, the gabiobox-Spiral system gabions are gaining popularity in private garden design.
Most popular related searches
Special components available
- Other mesh widths, e. g. 5 × 5 cm or 5 × 20 cm
- Special basket sizes available if appropriate for the quantity ordered
Services offered
- Provision of static calculations for gabion walls
- Technical advice from planning to implementation
- On-site installation briefing
- Complete gabion installation
- Complementary materials such as geogrids for bracing, nonwoven materials as a separation layer between the gabions and the in-situ soil, and may more.
- All parts made from special aluminium-galvanised steel with a resistance to corrosion of at leaste 3000 hours of salt-spray-test according to DIN EN IST 9227-NSS
- Welded steel wire mesh mats
- Tensile strength of wire ≥ 450 N/mm2
- Wire size of 3.5 mm, 4.5 mm oder 5.0 mm
- Mesh width 10 × 10 cm or 5 × 10 cm
- Distance pieces Ø 5.0 mm, 450 N/mm2
- Spirals Ø 4.5 mm, 450 N/mm2
Your advantages
- Verified quality
- Efficient material savings
- Unlimited creative scope
- in stock
- very good cost/performance ratio
