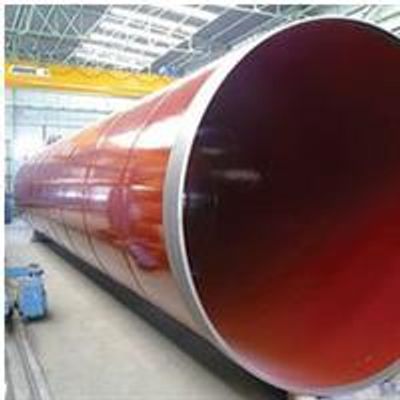

YTM Pipe - Spiral Welded Pipes

• Oil, Natural Gas, Water lines.
• Flammable & nonflammable liquid conveyance and distribution pipelines
• Steel structures for construction
• Presured Air Lines
• Liquid Hydrocarbon lines
• Rafineries
• High Temperature water
• Energy Santrals and othe energy projects etc.

Product Range

• Outside Diameter: 8” – 148” / 219 mm – 3750 mm
• Wall Thickness: 4mm-25,4mm
• Unit Length: 8m to 38m most common 18,5m

Material Grade

• API 5L PSL 1: Gr A, Gr B, X 42, X 46, X 52, X 56, X 60, X 65, X 70
• API 5L PSL 2: Gr B, X42 , X46 , X52 , X56 , X60 , X65 , X70 , X80
• ASTM A 53: Gr A, Gr B
• ASTM A252: GRADE1, GRADE2, GRADE3
• TS EN 10217-1(EN 10217-1): P 195 TR1, P 235 TR1, P 265 TR1, P 195 TR2, P 235 TR2, P 265 TR2
• EN 10224: L 235, L 275, L 360
• EN 10219 - 1/2: S 235, S 275, S 355

Production Standarts

• TS EN 10217-1(EN 10217-1): P 195 TR1, P 235 TR1, P 265 TR1, P 195 TR2, P 235 TR2, P 265 TR2
• EN 10224: L 235, L 275, L 360
• ISO3183-2015.2: L 245NB, L 290NB, L 360NB
• GOST 20295: K34,K38,K42,K50,K52, and K55

Surface Preparation

• ISO 8501 - 1, ISO 8502 - 3, ISO 8503 – 1

Coating Standards

• Polyethylene: AWWA C 215, DIN 30670, NFA 49710, TS EN 10288, UNI 9099
• Polypropylene: DIN 30678, NFA 49711
• Solvent Free Epoxy: AWWA C 210, EN 10289, NFA 49709
• Fusion-bonded Epoxy: AWWA C 213
• Bitumen: DIN 30673, BS 534

Lining Standards

• Epoxy: AWWA C 210, EN 10289, NFA 49709
• Cement mortar: AWWA C 205, DIN 2614, TS 8590, EN 10298
