Spiralift - Model SL -In-Channel Fine Screen
The SPIRALIFT SL features Taskmaster grinding technology in combination with a shaftless screw screen. This system fine screens, washes and conveys solids out of a channel. The discharge is a homogenous, ground filtrate which is washed, compacted and conditioned - ideal for landfill disposal. By combining two technologies into one system, the SPIRALIFT forms a uniquely effective system.
A Taskmaster grinder first reduces the solids to small particles, loosening biological material and increasing surface area. The reduced particles are then captured on the SPIRALIFT`s fine screen and conveyed past a spray wash manifold. The compacted particles are finally discharged into a bin, bag or auxiliary conveyor.
Three basic models are provided: the Spiralift SL, SLD and SLT to accommodate from 12" through 70" wide channel widths for flows up to 12 mgd (525 l/s).

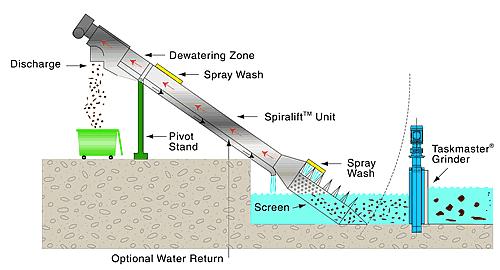

Solids are first ground by a powerful Taskmaster and loose organic material separated. As solids are captured on the fine screen a powerful water spray further washes them. The solids are conveyed compacted by the shaftless screw and discharged out of the channel.
