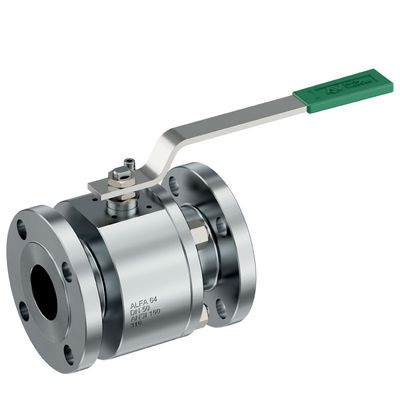

ALFA VALVOLE - Model A64 ANSI 150 -Split Body Ball Valve
FromAlfa Valvole
The Alfa Valvole A64 ANSI 150 is a flanged type split body ball valve, renowned for its full bore design, suitable for a wide array of industrial applications. Constructed to facilitate a variety of environments, the valve supports a size range from 1/2” to 8” (15mm to 200mm) and a temperature range of -40°C to +200°C, under ANSI 150 pressure conditions. Its construction options include materials like duplex, superduplex, nickel-based alloys, and bronze-aluminum alloys, tailored to specific requirements. Featuring the ANSI/EN standards' flange facings, the valve ensures compliance with ASME standards for face-to-face and flange drilling designs. Noteworthy are its safety and operational features, including a double block and bleed system for precise fluid control and a fire-safe gasket configuration adhering to EN10497 and API standards. Additionally, the valve design incorporates an antistatic device and an anti blow-out stem for enhanced safety and reliability in demanding conditions.Most popular related searches
Flanged type ball valve. Split body ball valve. Full bore. Split body type valve, bolted connection, full bore Floating ball. Wide range of application, industries and medium. Available in different materials (bar stock or casting). Duplex, superduplex, nickel-based halloys, bronze-alluminium alloys and other exotic materials available on demand.
- Size range: 1/2” ≤ DN ≤ 8” / 15 ≤ DN ≤ 200
- Pressure range: ANSI 150
- Standard temperature range: -40°C ≤ T ≤ +200°C
- Flange facing RF according to: ASME B16.5
- Flange drilling, smooth holes according: ASME B16.5
- Face to face: ASME B16.10
- Designed according to : ASME B16.34 API6D / PED 2014/68/UE
- Tightness class : grade A (Zero Leakage) acc. EN 12266-1
