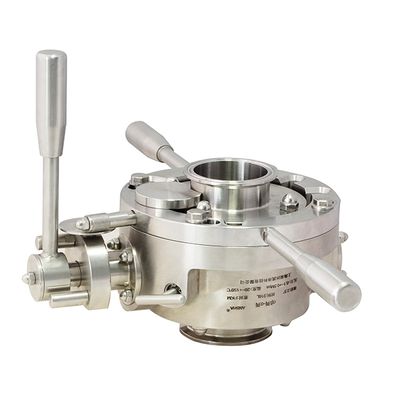

Ansha - Split Valve
Split Valve is one kind of high precision and engineering valve used for airtight transport sterile powder or powder harmful to human health, to reduce cross pollutant and protect worker. αβ valve assembling with SIP sterilizing structure, do the sterilizing for valve, connected equipment, vessel, IBC cabinet and tank. The valve mainly used for: load/unload powder for Isolator, load/unload for reactor, proportioning, grinding, sampling, IBC transport in airtight condition.
Most popular related searches
diaphragm valve
sanitary diaphragm valve
sanitary valve
parts washing
IBC tank
sample grinding
sample transport
worker protection
- Size: 2.0"?2.0"?3.0”?4.0“?6.0"?8.0“
- Connection: Tri-clamp?PN6/PN10 Flange
- Main Material: 316L(Touch the media)304(Not touch the media)
- Seal Material: Viton(White colour, standard), meet FDA requirementEPDM, Silicon, Viton(Option)
- Sealing Calss:OEB Class 4 (OEL 1-10μm/m3)
- Operating Pressure: -0.1Mpa~+0.5Mpa
- Sterilization mode: SIP
- Anti-explosion Calss: ATEX ?2 GD T4
- Spare Parts: Active pressure plug, Active protection plug, Active washing parts, Passive pressure cover, Passive protection cover, Passive washing parts.
- Surface: Ra<0.4, Standard(Touch the media) Ra<0.8(Not touch the media)
- Operation: Manual, Aotumatic
