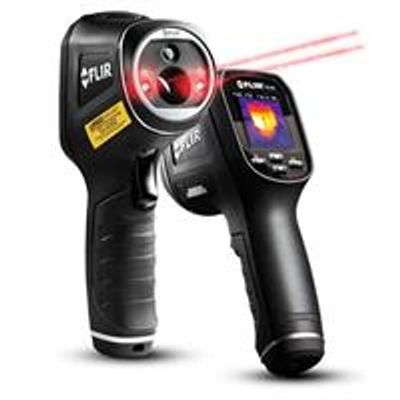

FLIR - Model TG165 -Spot Thermal Cameras

Overview

• Accuracy : ±1.5% or 1.5°C (2.7°F)
• Detector Type : Focal plane array (FPA), uncooled microbolometer
• Field of view (FOV) : 50° x 38,6°
• IR Resolution : 80 × 60 pixels
• Laser : Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
• Object Temperature Range : -25°C to 380°C (-13°F to 716°F)
• Thermal Sensitivity/NETD :

Environmental

• Drop test : Designed for 2 m (6.6 ft)
• Humidity (Operating and Storage) : 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
• Operating Temperature Range : -10°C to 45°C (14°F to 113°F)
• Storage Temperature Range : -30°C to 55°C (-22°F to 131°F)
• Tripod Mounting : 1/4 in.-20 on handle bottom

Imaging & Optical

• Color palettes : Hot Iron, Rainbow, Grayscale
• Focus : Focus free
• Gallery : 17565
• Image Frequency : 9 Hz
• Minimum Focus Distance : 0.1 m (4 in.)
• Minimum Measurement Distance : 26 cm (10 in.)
• Spectral Range : 8–14 µm

Measurement & Analysis

• Center spot : Yes

Meter Data

• Camera size (L x W x H) : 186 mm x 55 mm x 94 mm (7.3 in x 2.2 in x 3.7 in)
• Camera weight incl battery : 0.312 kg (11 oz)
• Display : 2.0 in. TFT LCD

Power

• Battery operating time : >5 hours of continuous scanning with lasers
• Battery Type : Rechargeable Li ion battery
• Battery voltage : 3.7 V
• Charging system : Battery is charged inside the camera
• Charging Time : 4 hours to 90%, 6 hours to 100%
• Power Management : Adjustable; OFF, 1 min., 2 min., 5 min., 10 min.
• Battery charge life : 30 days minimum

Shipping Information

• Includes : Wrist strap lanyard, 8 GB Micro SD card, power supply with separate USB cable, printed documentation

Storage Media

• Image Storage Capacity : 75 000 pictures with included 8 GB Micro SD card
• Memory Expansion : 32 GB SD card maximum
• Memory Type : Micro SD card
• Saved image format : Bitmap (BMP) image with temperature and emissivity
