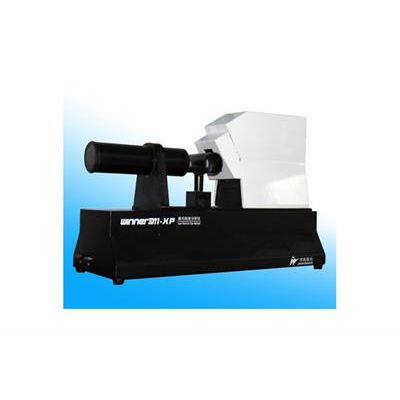

Winner - Model 311XP -Spray Laser Particle Size Analyzer

Winner311xp desktop spray laser particle size analyzer, with a number of patented technology including lens protection device. It could test size of droplet in the air without touch. It’s mainly apply to droplet detection of small spray equipment, such as medical atomizer,atomizing drugs and aerosol.

Main Features:
1) Unique patented technology
Based on laser scattering principle, adopt a single beam of parallel light path and the dual-lens, dual-array detector technology to ensure high collection of scattering light at different angles, extends the measurement limit, improve the resolution of the instrument.

2) Unique air flow protection device
Airflow protection system can effectively protect the lens to avoid droplet  pollution of the lens in the testing process.

3)For the national pharmacopoeia of inhaled aerosols, sprays, size requirements and the development of inhalation and other desktop spray laser particle size analyzer, can be a variety of aerosols, sprays and other small spray device for testing, integration of micro-nano the company a variety of patented technology, is the best choice of small spray particle size testing

Patent Technology:
Pressurized aerosol protection device for spray particle size analyzer is protected by patent No. ZL 2011 2 0267651.9
Spray particle size analyzer with auxiliary probe construction is protected by patent No. ZL 2011 2 0267648.7
Split spray laser particle size analyzer is protected by patent No. ZL 2011 2 0267654.2
Optical bench design is protected by patent No.- ZL 2014 2 0378380.8,
3 dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.
Mie scattering principle application patent No.- ZL 2013 2 0812021.4.

• Model: Winner 311XP
• Size Range: 0.1µm-100µm
• Detector channels: 40
• Accuracy error: <1% ( CRM D50)
• Repeatability error: <1% ( CRM D50)
• Light source: Semiconductor   λ= 650nm   p>1mW
• Feeding: open
• Measurement area length: 6cm
• Dimension: L66*W26*H45cm
• N.W.: 19KG
