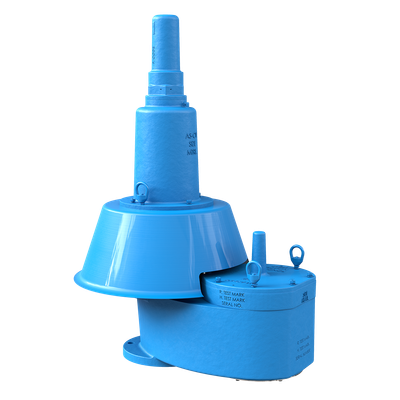

Groth - Model 12E-TSW -Spring Loaded Pressure / Vacuum Relief Valve
The Groth Model 12E-TSW spring loaded design was created to exceed industry needs. Extensive research and development have produced a product that achieves both superior sealing performance and industry leading flow rates, while also allowing customers to reach required flow with a potentially smaller sized valve. The pressure/vacuum relief valve is designed to protect your tank from damage created by overpressure or excessive vacuum. Costly product evaporative losses due to normal tank breathing are greatly reduced. The Model 12E-TSW is a superior sealing valve developed to minimize fugitive emissions while providing increased protection and safety to tank equipment and on-site personnel.
Most popular related searches
pressure vacuum relief valve
relief valve
pressure relief valve
spring-loaded pressure relief valve
fugitive emissions
steam control valve
fugitive emissions control
safety system
vacuum evaporation
vacuum evaporator
- Modular Construction
- Cushioned air seating
- Superior performing fluoropolymer diaphragms
- Self draining housing body and drip rings
- Peripheral Guiding and center stabilizing system for alignment
- PED and ATEX Certified
- Sizes: 2” (DN 50) through 12” (DN 300)
- Pressure Settings: 1 psig to 15 psig
- Vacuum Settings: 0.464 osig (2 mbarg) to 24 osig
- Material: Aluminum, Carbon Steel, Stainless Steel, special materials available upon request
- Buna-N, FKM
- Steam Jacket Valve
