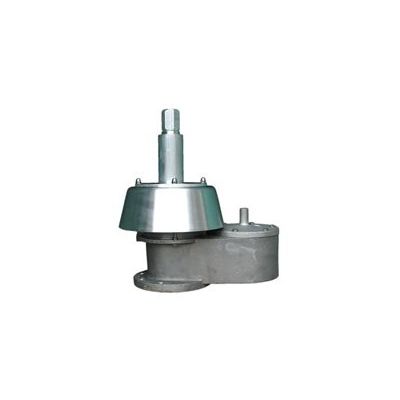

Elmac Technologies - Spring-Loaded Pressure/Vacuum Relief Valves to Atmosphere
Direct acting pressure and vacuum relief valves (also known as breather valves, conservation vents, or safety vents) are special types of relief valves which are specifically designed for tank protection. This combined unit allows pressure and vacuum relief to atmosphere.
Pressure / vacuum relief valves are used extensively on bulk storage tanks, including fixed roof tanks with floating covers, to minimise evaporation loss. The valve prevents the build up of excessive pressure or vacuum which can unbalance the system or damage the storage vessel.
The valves have a cast body which is flanged for connection to the storage tank. A weather hood protects the pressure exhaust port and a mesh cover is fitted to prevent the ingress of foreign matter for valves vented to atmosphere. Piped-away versions are also available throughout the range.
Both the pressure and vacuum sides of the valve incorporate a spring/pallet arrangement and diaphragm assembly which rest on an `O` ring seal to prevent leakage. This `O` ring can be removed and the seat machined optically flat, producing a metal to metal seating arrangement if required. The resistance of the sprint pushes the pallet and diaphragm against the seat to keep it closed. When the pressure or the vacuum increases, the pallet and diaphragm lifts and air/gas is allowed to flow.
The spring-loaded mechanism can be used in combination with standard weight-loaded pallets such that only the pressure or vacuum side is spring-loaded.
- Pressure/vacuum relief valves provide high gas flow from a compact valve size
- Range of sizes and materials to suit a wide range of applications
- Wide range of pressure and vacuum settings to provide maximum tank protection
whilst ensuring minimum gas loss - Combination valves with spring and/or weight-loaded pallets are available
- Valve sizing service assists optimum valve performance/cost specification
- Multiple configuration options for venting to/from pipes and/or atmosphere
- The Elmac technical team can advise on specific location queries
