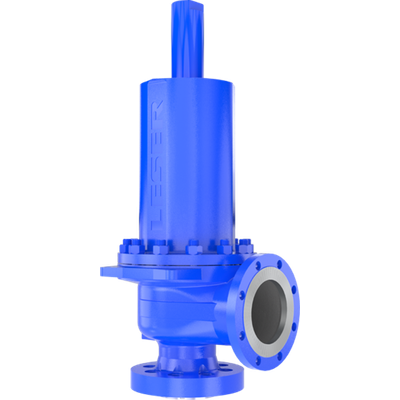

Leser - Model API Type 526 IC -Spring Loaded Safety Valves
Spring loaded safety valves according to API 526. High alloy materials available in 12 weeks delivery time. Longer service life due to stellited seats and shielded bellows
Most popular related searches
- Petrochemical
- Chemistry
- Oil & Gas
- also for operating temperatures < -165 °C
- High pressures and temperatures
- Corrosive media
- Back pressures up to 50%
- Set pressure(according to ASME): 0.12 - 414 bar | 2 - 6.000 psig
- Temperature(according to ASME): -196 to 538 °C |-321 to 1000 °F
- Capacity: Orifice D to T
- Connections ASME B16.5: NPS 1 to NPS 8
- Flange class Inlet ASME B16.5: Class 150 - Class 2500
- Body material: SA 216 WCB, SA 351 CF8M, SA 217 WC6, SA 352 LCB, SA 351 CF3M, SA 995 Gr 4A CD3MN (Duplex), SA 494 M35-1 (Monel), SA 494 CX2MW (Hastelloy)
- Narrowest flow diameter d0: 14 - 161.5 mm | 0.55 - 6.36 in
- Narrowest flow area A0: 154 - 20,485 mm² | 0.239 - 31.75 in²
- Bellows material (optional): INCONEL® 625 LCF
- Seat gasket: Metallic, Soft sealing
