Tricel - Sprinkler Water Tanks

Capacity levels are determined by the following:

• Hazard classifications – Usually the larger the hazard the greater volume of water required for protection
• Duration of water supply
• Mains refill capabilities – Refill duration limits outlined in BS EN12845, BS 9251 etc.
• Holding capacity requirements. Full holding or reduced capacity. Reduced capacity may be acceptable where the main refill capabilities are sufficient to make up the water requirement balance within the “time” regulations for specific hazard classifications
• Wet or dry pipe system
• Range between the highest and lowest sprinker
• Sprinker design standard

Tank capacity ranges from 5m3 to 1300m3

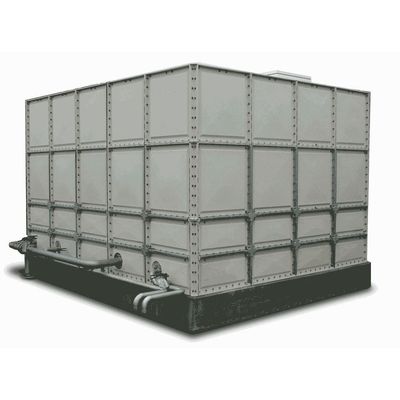

Tricel tanks are manufactured from GRP, due to its robust properties which are excellent for longevity and durability. Tricel tanks are constructed to ensure minimal maintenance is required limiting the necessity to drain down the tank during maintenance work.

• To ensure optimum performance and compliance with regulations, the following ancillary items are usually fitted to our fire protection tanks:
• Hydrostatic contents gauge to measure the level of water in the tank.
• AB Air gap to prevent water siphoning back into the mains water supply.
• Internal Ladder for safe tank access.
• External aluminium ladder complete with safety cage to safely gain access to the man-way cover for maintenance purposes.
• Tank overflow and warning pipes.
• Drainage facility to completely drain down the tank for maintenance work.
• Access man-way to enable testing, maintenance etc.
• Side access hatch.
• Vortex inhibitor eliminates air circulation through the water when large volumes of water are extracted from the tank.
• Immersion heater to prevent water from freezing in the tank and pipe work.
