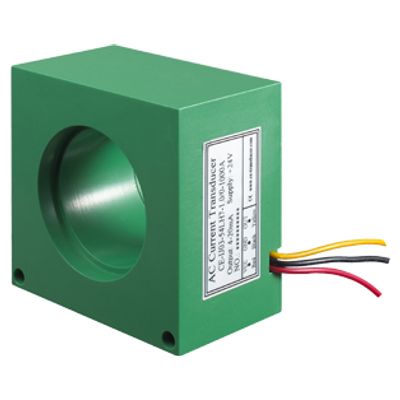

SSET - Model CE-IJ03-LH7 -Single Phase AC Current Transducer
This device is an AC high current electrical isolation transducer, Its input and output are not common grounded. The input signal is AC current, and the output signal is standard signal of DC voltage or DC current. The product with the characteristics of high precision, high isolation voltage, low temperature drift, small size and easy installation. It can be widely used in communication, electricity, railways, industrial control and other fields.
Most popular related searches
- High precision
- High isolation voltage
- Low temperature drift
- Small size
- Easy installation
- Test conditions: auxiliary power supply: +12 VDC, room temperature: 25 ℃.
- Input range: 0~ 1000A
- Accuracy: class 0.5 (adopts fiducial error)
- Operating temperature: -10~60℃
- Isolation voltage: 2500 V DC;
- Load capacity: voltage output ≥ 2k Ω, current output ≤ 250 Ω;
- Temperature drift: ≤300ppm/℃
- Response time: ≤ 300 mS
- Rated power consumption: <0.5W
- Output ripple: ≤10mV
- Frequency range: 45~65Hz (up to 5K, please specify when ordering)
- Surge impact immunity:
- Power port one-level ± 0.5KV (L-N/2Ω/integrated wave)
- Analog I/O port one-level ±0.5KV (L-N/40Ω/integrated wave)
- Impulse immunity: input / power supply port ± 2KV; analog I / O port ± 1KV
- Input overload capacity: 20 times of the measured current nominal value (maximum 500A), applying a repetition of five times a second, interval 300S
- Storage temperature: -55 ~+65°C; humidity: ≤95% (no dew).
