Stable Micro Systems - Model Dough Inflation System -Measure Dough Extension
Measure pressure and volume - Dough extensional rheology made simple. Bakers have always characterised dough by hand kneading and stretching to assess its quality, and know that baking performance is related to these rheological properties.
Such a simple test indicates the type of measurements that are required to predict baking performance. Bread making is a complex process involving mixing, dividing, moulding, sheeting, proofing to final baking, each of which have a characteristic time scale, strain and strain rate. As the rheological behaviour of dough is non-linear with strain, measurements must be made under conditions of strain and strain rate similar to those encountered in baking.

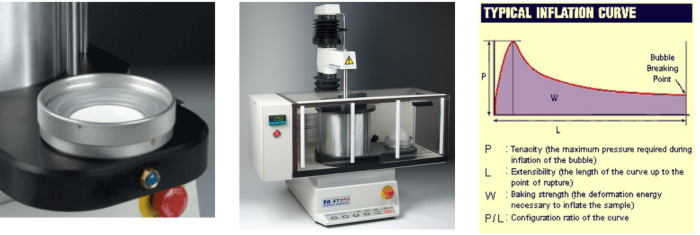

The D/R Dough Inflation System measures dough extensional rheology under conditions of strain similar to those of baking expansion. This is achieved by inflating a sheet of dough by volume displacement of air using a piston driven by a Stable Micro Systems TA.XTplus Texture Analyser. Pressure during inflation is measured by a pressure transducer and the volume of the inflating dough sheet is calculated from the displacement of the piston.
The D/R Dough Inflation System enables the rheological properties of both dough and gluten to be measured during biaxial stretching, which is the relevant deformation in the cell wall material surrounding an expanding gas bubble during proof and baking. The system together with dedicated software, combines ease of use with automatic data collection and rapid project based data analysis.
The procedure requires minimum handling of the dough when preparing samples - there is no contact of the sample when transferring to the D/R Dough Inflation System. This sophisticated system is a very comprehensive test tool for research, Q/C, production or process monitoring. The test, display of the result and calculation of index values are fully automatic.
The Texture Analyser uses a range of different probes and fixtures according to your specific application.
Whether you require a simple test and data analysis solution or a fully featured software package – we give you the choice.
If your product is temperature sensitive, we have a range of temperature monitoring and control options.
By attaching peripheral devices you can collect additional measurement parameters during your standard texture analysis test.
Find out how to increase your sample throughput, walk away time and testing efficiency with several automation options.
Our range of Texture Analyser accessories covers requirements for the use, maintenance and protection of your instrument.
