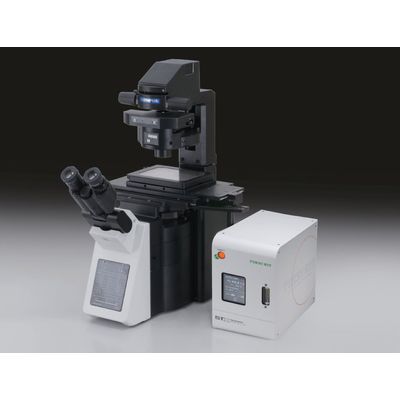

Tokai Hit - Stage Top Incubator - Incubation System for Microscopes
Offers precision temperature, humidity and CO2 control for cell culture on a microscope. Enables to conduct short and long term (more than 2 weeks) Time-Lapse Imaging. By applying Real-time Sample Feedback Regulation, it can maintain an optimal cell culture environment which is as same as the conventional CO2 incubator. With our variety of options, we can offer solutions for abundant applications, and leading the experiment to success.
Tokai Hit`s original Top Heater is proven to distribute heat uniformly within the Chamber
regardless of the type of vessels.
With unique Top Heater Heating Time regulation, the bottom of Chamber is access-free for variety of objectives. (No metal plate at the bottom.)
Sterilized temperature sensor and magnetic lids make it easy to measure
the temp. of culture media upon research needs.
The controller regulates the heater based on the sensor signal to keep sample at the target temp. accurately.
Keeps high humidity inside the chamber by heating the distilled water in the Bath Unit.
Internal Humidifier minimizes the change in concentration of media by keeping the humidity inside the chamber.
The controller mixes 100%CO2 gas and the surrounding air automatically. Stable gas concentration inside the Chamber is obtained by keep sending the mixed gas to the Chamber.
(?In case of controller with a built-in digital gas mixer)
In addition to PID control, Continuous Current Control minimizes the focus drift generated by thermal expansion and it also prevents light intensity change compared to the conventional ON/OFF control.
Simple operation of GUI will assist to visualize the preparation to setting and lead your cell culture to success.
The system includes the software to program temp. and CO2/O2 concentration
as this function allows to expand the variety of experiment.
Captures the PC screen to transfer images to smart-phones and tablets.
Enables to see the image at home. *PC must be connected with internet.
Logs the temperature of each heaters, sample temperature and gas concentration
and saves the data in CSV format.
