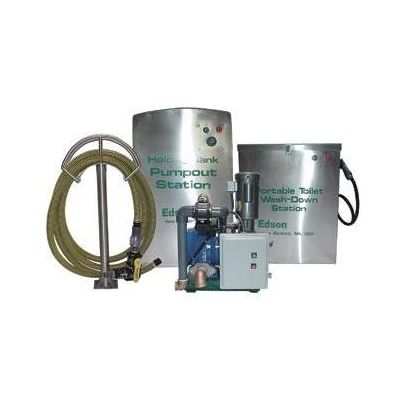

Edson - Stainless Pump-n-Rinse

Pump Unit: Stainless & Fiberglass

• Max Volume: 35 GPM / 133 LPM
• Dry Suction Lift: to 29 ft / 8.8m
• Discharge Head: to 65 ft / 19.8 m
• Electrical: 2hp /115/230V/60hz/tefc motor, 24V start/stop & NMEA 4X control
• Construction: Marine grade components, Powder coated aluminum, Stainless, PVC & Bronze

Cover:

• Stainless: 14 gauge Stainless Steel
• Fiberglass: Heavy Duty Fiberglass w/ UV inhibitors

Hose Stand:

• Stainless: Welded Brushed Stainless Tubing
• Fiberglass: Powder Coated Aluminum

Hose Assembly:

• Stainless & Fiberglass 25ft Flex Hose w/ ball valve, sight glass & complete set of deck adapters

Portable Toilet Wash-Down Station:

• Stainless: 14 gauge Brushed Stainless Steel
• Fiberglass: Heavy Duty Fiberglass w/ UV inhibitors
• Stainless & Fiberglass: Gasketed Lid with Stainless Gas Hinges, Rinse Hose, Deep Draw 18"Funnel Shape Sink w/ 3`Drain Non-Skid Sink Rim

• Marine / Recreational Pump-Out Stations
• Waste Oil Collection Stations

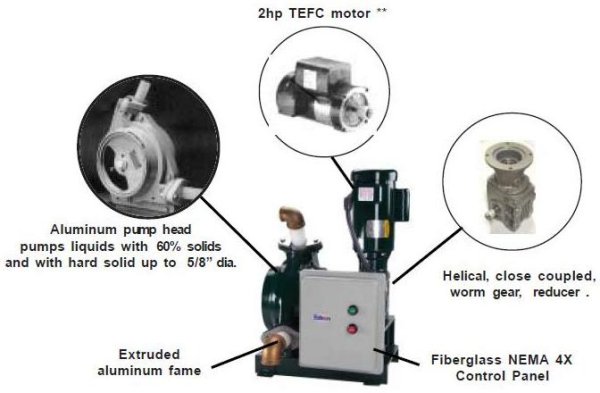

The advantages of this design are pumping suspended solids with no valves to clog, no solution contacting moving parts, run dry capability, and no seals to leak combined with high suction and discharge pressures.

Motor Options:

• 2 HP @3450rpm (Pump Out Stations)
  • 120/220V 1ph
  • 240/480V 3ph
  • 12V DC
• 1 HP @1750rpm (Pump Out Carts)
  • 120/220V 1ph
  • 240/480V 3ph
  • 12V DC
