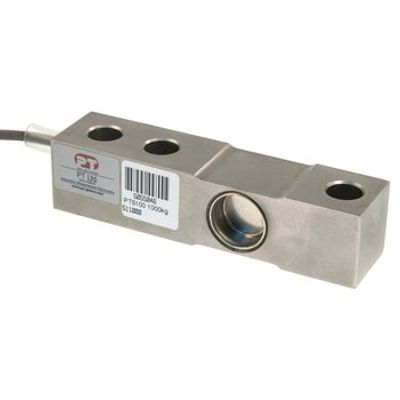

PT Limited - Model PT5100 -Stainless Shear Beam Load Cells (500kg - 5t)
FromPT Limited
(500kg ~ 5000kg) IP68 Shear Beam Load Cell. The PT5100 is a stainless steel shear beam load cell welded sealed with a protection rating of IP68. Suitable for demanding environmental conditions, or where peace of mind for a long life of demanding use is desired. Every load cell is precision tested and verified to meet exact requirements. Available in 5 capacities from 500kg to 5000kg with 6 metres of 4 core cable.
Most popular related searches
- Signal Output at Capacity: 2±0.005mV/V
- Linearity Error: < 0.020% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.020% FSO
- Hysteresis: < 0.020% FSO
- Creep/(30 mins): < 0.020% FSO
- Zero Balance: < 1% Capacity
- Temperature Effect On Span/10C): < 0.015% FSO
- Temperature Effect on Zero/10C): < 0.015% FSO
- Operating Temperature Range: - 20 ~ 65 C
- Storage Temperature Range: - 50 ~ 85 C
- Excitation + ve: RED
- Signal + ve: GREEN
- Service Load: 100% of Rated Capacity
- Safe Load: 150% of Rated Capacity
- Safe Side Load: 100% Capacity
- Ultimate Load: 300% Capacity
- Input Resistance: 350O ± 3O
- Output Resistance: 350O ± 3O
- Insulation Resistance: > 5000 MO (@ 50 VDC)
- Excitation Voltage (Rec): 5 ~ 15V AC/DC
- Excitation Voltage (Max: 18 V AC/DC
- Cable: 6m, Dia, 4.5~5.0 mm
- Material: 17-4PH Stainless Steel
- Excitation -ve: BLACK
- Signal -ve: WHITE
