Mascot - Model SS -Stainless Steel Borehole Submersible Pumps / Ground Water Pumps

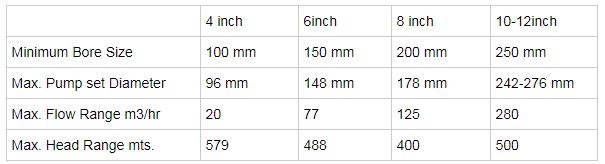

Submersible borewell Pumps suitable for Bore hole of 100 mm to 250mm. Coupled with Submersible motor with NEMA Standards (for Spline Coupling).

• V4 Submersible Deep well Pumps:
• Radial Flow Borehole Submersible pumps:
• Mix Flow Borehole Submersible Pumps:

• Maximum Liquid Temperature: 40oC
• Minimum Flow Velocity: 0.2 m/sec.
• Maximum Sand Content: 50g/m3

High Efficiency Design :

• Mascot Stainless Steel Borehole Submersible pump has hydraulic design to give you Maximum Efficiency to match any world Class pumps in its range.
• You can expect Extra 5 to 9% Overall Efficiency that its Cast Iron Submersible Pump set. Thus, Reducing your Cost of Ownership.
• Specially Designed 6” Radial Flow pumps for High Head & Low yield Water wells.

Material of Construction:

• Use of Superior Quality SS 304 Sheet metal from the Finest Steel Factory of India, assure a consistent Quality of material in each pump you buy.
• These Special Chosen Pump Grade Stainless Steel can withstand high abrasive Sandy Water and Corrosive environment of Salty water and give same performance for life long.
• High Quality Rubber Bush & Neck Ring are specially provided to reduce the wear due to Sand on the Impeller, Bowl & Shaft.

Non Return Valve (NRV) :

• All Mascot Pumps are provided with NRV to avoid effect of Water Hammer in Pump and prevent Reverse Rotation of Pump.
• (Special Quick Evacuation system on Request)

Pumping Clear Cold Drinking Water from Bore Hole / borewell for use as Water supply Pump, Irrigation Pump, Agriculture Pump, Fire Fighting Application or for Industrial & Government water supply systems.
