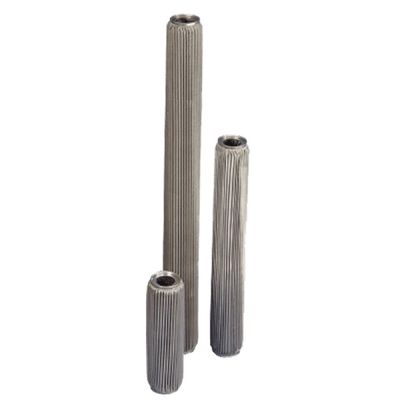

Fil-TrekModel Eco-Mesh Series -Stainless Steel Cartridge Filter

SHARE

Eco-Mesh Series stainless steel cartridge filters offer effective nominal removal ratings from 3m to 1000m. Exceptional in high flow applications with excellent corrosion resistance. Available in a wide range of mesh sizes and end cap options. Choose between pleated or cylindrical media and are cleanable and reusable.

Most popular related searches
  • Stainless Steel
  • Pleated or Cylindrical Media
  • Cleanable/backwashable
Materials of Construction

Media:

  • Stainless steel 304
  • Stainless steel 316
Available Sizes/Lengths

Outside Diameter:

  • 2.5″ (6.35 cm)

Inside Diameter:

  • 1.0″ (2.54 cm)

Lengths:

  • 10” (25.4 cm)
  • 20” (50.8 cm)
  • 30” (76.2 cm)
  • 40” (101.6 cm)
Temperature Limit

Up to 850°F (454°C)
*Temperature is dependant on o-ring/gasket
material

Maximum Differential Pressure

60 PSID (4bar)

Micron Ratings

5 -840 micron

Filter Efficiency

Nominal 90%
