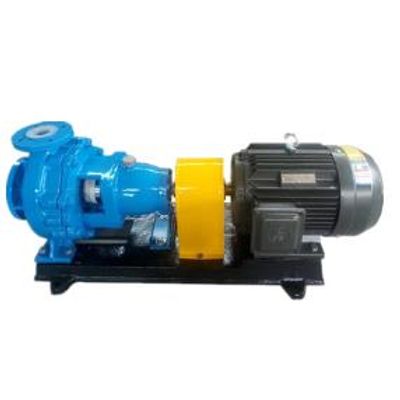

Hedun - Model IH -Stainless Steel Centrifugal Electric Chemical Pumps
TH type stainless steel centrifugal electric chemical pumps for corrosive liquid which containing no solid particles liquid which is corrosive, and viscosity similar to water in the liquids.Mark it, performance rating and size equivalent international standard ISO2858 being adopted, with wide performance range, high efficiency, "three" level is high and maintenance is convenient wait for a characteristic, its efficiency is increased by 5% on average than F type pump, is the national promotion of energy-saving products.
- Capacity 6.3-400m3/h
- Head 5-132m
- Power 0.55-110kw
- Speed 1450-2900rpm
- Material stainless steel
- Max temperature 80?
- Seal mechanical seal
- Warranty one year(normal wear and tear excepted)
Explanationofthepumpmodel:
- TH50-32-160(A)
- TH: International standard chemical pump series code
- 50: Inlet suction size 50mm
- 32: Discharge suction size 32mm
- 160: Impeller normal diameter 160mm
- A: Impeller cutting type
Construction:
TH type stainless steel centrifugal electric chemical pumps for corrosive liquids is mainly leaf transmission line, seal ring nut, pump cover, impeller, intermediate support, sealing parts, suspension parts, shaft, etc. Pump cover through the seam allowance on the fixed bracket in the middle,
- Chemical industry
- Petroleum industry
- Electric power industry
- Paper making industry
- Food industry
