EBARA Pumps Americas Corporation (EPAC)
Products
Ebara - Model CDU/2CDU - Stainless ...

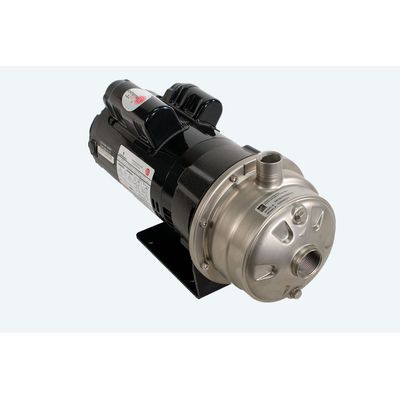

Ebara - Model CDU/2CDU -Stainless Steel Centrifugal Pump

FromEBARA Pumps Americas Corporation (EPAC)

Close coupled design – saves space; simplifies maintenance and installation. Stainless steel liquid end components – high quality; corrosion resistance.

Most popular related searches

stainless steel centrifugal pump

ultrapure water system

reverse osmosis water

Versatile mounting – can be installed horizontally or vertically
Back pullout construction – allows for assembly and overhaul of the impeller and seal without distorting suction and discharge connections
Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
High-efficiency – lowers operating costs
High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation
Available as a complete pump or as a kit

Suction Size: 1 1/4″ to 1 1/2″
Discharge Size: 1″ NPT thread
Range of HP: 1/2 to 5 HP
Capacity: 5 to 105 GPM
Head: 3 to 255 Feet
Liquid: clean water, glycol, dielectric fluid

Pressure Boosting
Plant services
Water supply systems
Liquid transfer
Reverse Osmosis
Ultrapure water systems
Water reclamation
Water treatment
Irrigation
Air conditioning systems

Ebara - Model CDU/2CDU -Stainless Steel Centrifugal Pump

Key Features

Specifications

Applications
