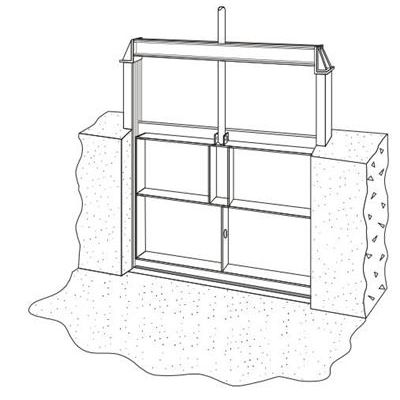

Fontaine-Aquanox - Model 25 Series -Stainless Steel Channel Gate
The Fontaine-Aquanox SERIES 25 gate is designed to control water flows in channels. It is the same construction as the Series 20 with the exception that it is not equipped with a top seal. The maximum allowable leakage is 0.04 US GPM per foot (0.5 l/min per meter) of the perimeter in seating and unseating head conditions (head conditions taken is equal to the height of the slide).
Stainless Steel Construction
Because of its Stainless Steel construction, the SERIES 25 has a very good corrosion and erosion resistance and can be operated many years with a minimum maintenance. The Stainless Steel construction allows a very large design flexibility, the result being a lighter weight and easier-to-install channel gate.
AWWA Standards
The SERIES 25 gates are designed to meet and exceed AWWA C561-14 standard. The result is a high-quality gate with a very long life expectancy.
