Gnee-Steel - Model 310 -Stainless Steel Clad Plate

• Raw material: carbon steel (base material) and stainless steel (cladding material)
• Manufacturing method: explosion cladding and rolling cladding (hot rolling, cold rolling)
• Place of origin: Anyang, Henan, China
• Package: standard export package

Product Introduction

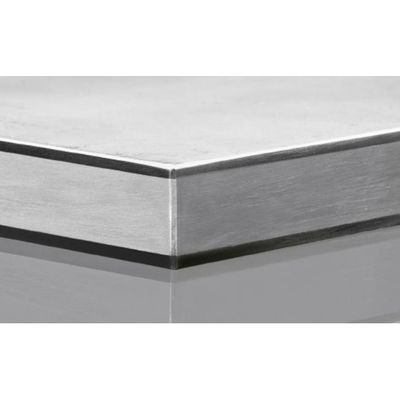

310 Stainless steel clad plate, also known as 310 stainless clad steel plate, is a composite material made by bonding stainless steel plate (cladding material) to either or both sides of a carbon steel or low alloy steel plate (base metal). Bonding will form a diffusion layer between these two kinds of plates. That diffusion layer has a stable mechanical performance without obvious grain micro-structure, and its internal mechanical properties show a graded change in the thickness direction.

Moreover, this kind of plate unites the good weldability, ductility, and thermal conductivity of carbon steel and the high corrosion resistance, abrasion resistance, and magnetic resistance of stainless steel. Thus it features excellent cost-effectiveness when being applied in many different applications.

These clad plates are designed to improve corrosion/heat resistance while retaining low cost, high strength, and light weight. It can be used above 1000 degrees Celsius in continuous applications and above 1150 degrees Celsius in intermittent services. In view of that, the industries it involves include:

1. Construction and Infrastructure

It is a perfect building material that can guarantee a longer lifespan due to the low thermal expansion rate, high strength, and high rust resistance. It can be utilized in bridges, tunnels, structural components, building facades, walking beams, panels, doors, windows, fans, roofing, shipbuilding, curtain wall of high-grade building, offshore platforms, steel structures, etc.

2. Automobile Industry

It can be found in automobiles, trains, aircraft, and ships for various components. They include exhaust systems, automotive frames, vehicle and ship luggage racks, flue gas desulfurization systems, body components, engine parts, structural parts, interior fittings, etc.

3. Food Processing

It is known that 310 stainless steel is food-grade stainless steel, hence it has non-reactive nature, ease of cleaning, and corrosion resistance. Generally, it is used for the manufacturing of various food processing equipment, such as storage containers, kitchen wares, home appliances, and so on.

4. Medical and Healthcare

Due to its sterilizability, biocompatibility, low magnetic permeability, and corrosion resistance, the plate is commonly used in medical equipment, structural components for cryogenic vessels, surgical instruments, cleanrooms, implants, and so on.

5. Manufacturing Industry

It is used to manufacture 310 stainless steel coils, pipes, profiles, and fittings. Besides, it can be used in making smelter and steel melting equipment, continuous casting equipment, annealing covers and boxes, burners, tube hangers, various processing plants, and so on.

6. Coal & Energy Industry

It is largely founded in transportation pipelines, storage tanks, refineries chemical containers, power plants, equipment exposed to harsh chemicals, nuclear facilities, and renewable energy sectors.

7. Industry

It is used to make pressure vessels, pagodas, conveyor systems, pumps, water treatment plants, steam boilers, pulp and paper equipment, lead pots, burners, muffles, saggers, and other industrial equipment.

8. Public Uses

It can also be used to fabricate electronics, promotional signage racks, poles, advertising columns, fitness equipment, furniture, platform barriers, roadblocks, isolation belts, expansion joints, wind boxes, and other interior and exterior decorations.

However, it should be noted that ASTM 310 stainless steel clad plate is not recommended for being used in a wet corrosive environment. Its increased carbon content to enhance creep properties adversely affects its water corrosion resistance.

• Raw Material: base metal: low alloy steel or carbon steel (Q235B?Q345R?Q355?Q245R?20#?40#…)
• cladding metal: stainless steel (304, 304L, 310, 310S, 316, 321, 318, 410S, 420, 904L…)
• Grade: 310
• Standard: ASTM, AISI, DIN, EN, GB, JIS
• Thickness: base material thickness: 0.5 – 50 mm
• cladding material thickness:0.5mm -20 mm
• Width: 100 – 800 mm
• Length: 500 – 15000 mm
• Shape: rectangular, square, round or as required
• Production Method: explosive cladding, hot/cold rolling
• Surface: NO.1, 2B, BA, 4K, 8K, HL, NO.4, annealed, pickled, polished,
• Value-added Services: plasma cutting, saw cutting, shearing, laser cutting, waterjet cutting, forming, welding, machining, leveling, rolling, bending, etc
• Package: standard export seaworthy package or as required
