Pomac BV

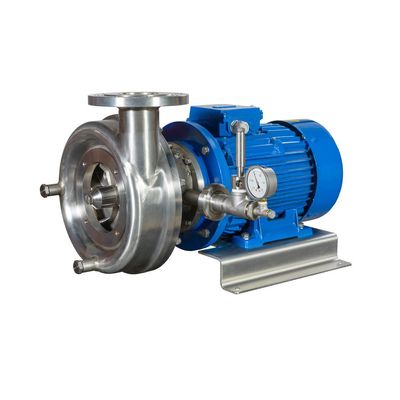

Pomac - Model PSVP -Stainless Steel Defoaming Pumps
FromPomac BV
The stainless steel PSVP defoaming pumps are capable of pumping foaming slurries during the starch production process. A special internal contruction enables transporting slurries containing air or foam. First the liquid is de-aired and defoamed in the so-called defoaming compartment. Subsequently, the liquid enters the pump casing via guide-blades where it is pumped away. If the liquid contains fibres as well as foam, a spiral screw can be fitted onto the product impeller.
Most popular related searches
stainless steel pump
silicone defoamer
pressure monitoring
pressure gauge
sealing sleeve
drain pressure
slurry pump
Depending on the application and the requirements the PSVP can be equipped with various options:
- Spiral screw
- Single or double oil seal with grease lubrication
- Vacuüm nozzle
- Pressure gauge for vacuum pressure monitoring
- Drain connection
- Max. viscosity: < 100 cP
- Capacity: < 150 m³/h
- Pressure: < 50 mlc
- Impeller: Open + vacuum impeller
- Materials: Wetted parts: 1.4404
- Connections: 3" / DN80 to 6" / DN150
- Connections: Couplings: DIN11851, DIN11864-1, SMS1145
- Flanges: EN1092-1, DIN11864-2, ANSI
- Tri-Clamps: ISO2852, DIN32676, DIN11864-3
- Shaft sealing: Lubricated single or double oil seal on shaft sleeve
- Sealing materials: NBR
- Elastomers: EPDM or Viton
- Surface roughness : Standard < 0,8 micron
- Motor options: Standard: IEC, IE3, B3/B5, IP55, isolcl. F, PTC
- Optional: IE4, low noise
