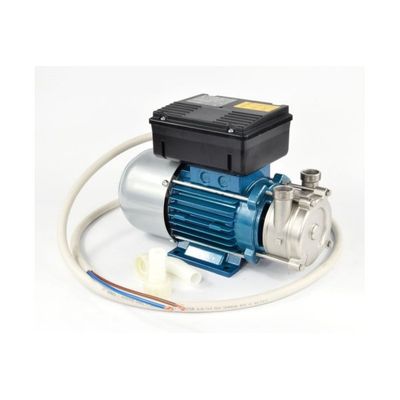

Tellarini - Model ALG 24/20 -Stainless Steel Electric Pumps

SHARE

The best solution for the suction and transfer of liquids, thanks to the strong self-priming capacity and the ability to run even with discontinuous presence of the liquid in suction. The ALG series, entirely made of AISI 316 stainless steel with bidirectional DC motor (12 or 24 Volt) is used when batteries are available as a power source. The electric pump is completed by a practical inverter to choose the pumping direction and by two short-circuit protection fuses. For each application, it is necessary to check the suitability and choose appropriate gaskets.

Most popular related searches
electric pump
stainless steel pump
corrosive liquid
gaskets
cable stripping
wash water
fire pump
water board
bilge
cooling water

The product are particularly suitable for use:
  • food industry (oil, vinegar, brine, fruit juices, beer wort, milk)
  • chemical industry(corrosive liquids)
  • nautical (bilge, services, cooling, washing, sea water)
  • agriculture (fungicides, liquid fertilizers, components on agricultural machinery, irrigation)
  • transports (tankers, road machines, on board water systems)
  • Maximum capacity : 28 lt/min
  • Maximum head : 13 m
  • Gasket on the shaft: Mechanical gasket
  • Maximum priming height : 6 m
  • Threaded ports: 3/4"
  • Maximum liquid density 1.1g/cm3 free of hard particles in suspension
  • Maximum temperature 90°C
  • Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
  • Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
  • Unidirectional pumping flow
  • Coupling with impeller locked
  • Possibility of working for short periods with closed pipes
  • During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Material

  • Pump Parts: AISI 316
  • Counterflange: AISI 316
  • Shaft : AISI 316
  • Impeller : AISI 316
  • Gaskets: NBR
  • Mechanical gasket ceramic/graphite/nbr

MOTOR

  • Powered with a Dc motor 24V
  • Equipped with MEC 63 motor (2400 rpm 0.3HP / 0,2 KW)
  • Service S1
  • Ip protection degree 23
  • Power connection via cable end Stripped cable 2m
  • ignition by switch
