Refex - Model 316 -Stainless Steel Extraction Bypass/Flow Cell Arrangement Electrode

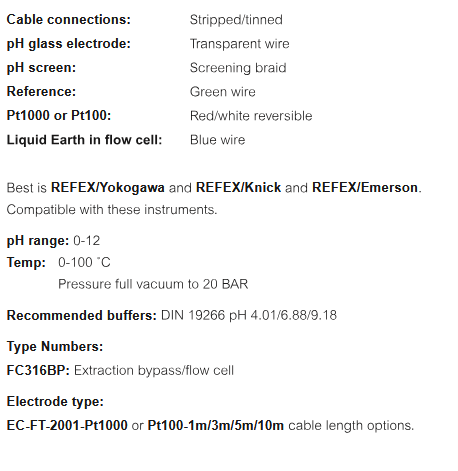

The REFEX Extraction bypass/flow cell arrangement is designed to retrofit to existing 1/2" 316 stainless steel pipe work. The process connections are 1/2" Swageioc type compression tittings in/out. liquid Earth/Solution ground is integral in the flow cell. The REFEX Electrode is a 12 x 120 mm combined electrode with inbuilt PtlOOO or Pt100 temp, comp device. The electrode process fitting is PG13.5 free turning electrode cap. Electrode has IP 68 fixed cable (1m/3m/5m/10m lengths) hard wiring back to the pH instrument.
