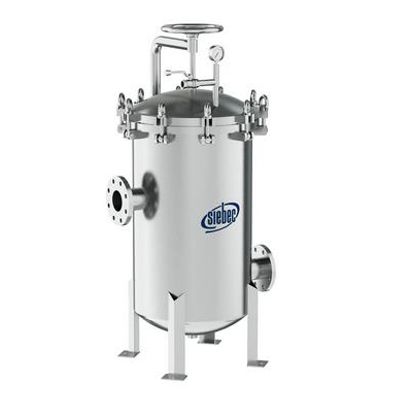

Siebec - Model P-INOX Series -Stainless Steel Filter Housing
The P-INOX is the equivalent of the P SERIES in stainless steel. Its design allows it to withstand greater pressures and therefore supports greater flow in an equivalent footprint (20 to 120 m³/h). This filter housing accepts 4 FILTECH™ Highflow 20" or 30" cartridges, reducing filtration and service costs. It is also possible to mount 28 QUALITHERM™ or QUALIBOB™ type cartridges.
The P-INOX is a large cartridge filter designed for the industrial sector. Its design integrates a tilting bolt closure and DN80 or DN100 PN16 flange connections. The cover is equipped with a 1/2” BSP connection for mounting a vent valve or a pressure gauge and a 1” connection for mounting the drain valve. The surface is electropolished for easy cleaning and corrosion resistance.
The filter housing accepts 20” and 30” FILTECH™ Highflow cartridges that reduce filtration and service costs. The very large filter surface area of these cartridges provides minimal pressure drop and excellent retention capabilities.
- Materials: 304 or 316L stainless steel
- Height: 20″ and 30″
- Simplified intervention and maintenance thanks to FILTECH™ technology.
- Options: pressure gauge, drain valve and vent valve in 316L.
- Max pressure: 7 bar at 75°C (rated for 10 bar at 100°C)
- Flow rate (m³/h): 120
- Max temperature (°C): 75
- Max pressure (bar): 7
- Materials: Stainless steel
- Seals: EPDM, FPM, NBR
- End: Flange
- Length (mm): 542
- Depth (mm): 686
- Height (mm): 1630
- Media height: 20", 30"
