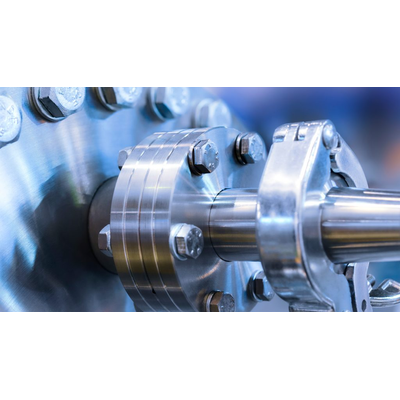

PM Industries - Model 304L -Stainless Steel Flange

This reduces the susceptibility to sensitization and intergranular corrosion, especially during welding. This steel is also known as austenitic stainless steel in layman’s terms. The basic composition of these two most crucial components provides excellent protection and strength to the instrument built with them. Just like stainless steel (304), 304L also has 18% chromium and 8% nickel in its chemical composition.

Stainless steel 304L grade is also known as kitchen grade, as it is an appropriate application for the food, beverage, and pharmaceutical industries since it is non-porous and simple to clean. The flanges that are made using this grade are commonly seen being used as equipment for joining pipelines, and valves that handle corrosive and chemical substances employ 304L flanges.

• Standards: ANSI/ASME B16.5, B16.48, ANSI Flanges, GOST Flanges, DIN Flanges, EN-1092, B16.47 Series A & B, ASME Flanges, EN Flanges, AWWA Flanges, BS Flanges.
• JIS Standard: 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
• DIN FLANGES: DIN 2527, 2627, 2631, 2656, 2576, 2673, 2629, 2628, 2566, 2641, 2637, 2655, 2634, 2636, 2632, 2633, 2638, 2642, 2573, 2635.
• Pressure Rating: Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
• Types: Threaded, Plate, Screwed, Forged.
• Supporting material: Gasket, Ring Joint, Flange Bolts
• Size range: 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
• Production technique: Forged, machined and Heat treated
• Available Flange Type: Weld Neck Flanges, RTJ Flanges, Slip On Flanges, Spectacle Blind Flanges, Flanges Gaskets, Square Flanges, Standard Insert Flanges, High Hub Blinds Flanges, Flat Flanges, forged flanges, Weldo / Nipo Flanges, Jacket Insert Flanges, Tongue groove Flanges, Blind Flanges, Socket Weld Flanges, Large diameter Flanges, Long Weld Neck Flanges, Spacer Blinds, SWRF Flanges, SORF Flanges, Angle Face Rings Flanges, Spades Ring Spacers Flanges, WNRF Flanges, Screwed Flanges, Insert Flanges, flanges bolts, cf flange, Lap Joint Flanges, ASME B16.36 Orifice Flanges, Plate Flange, Expander Flanges, Ring Type Joint Flanges, Loose Flanges, Reducing Flanges, puddle flange, Threaded Flanges, blank flange, vacuum flange.
• Connect Type/ Flange Face Type: Ring Type Joint (RTJ), Flat Face (FF), Tongue & Groove, Small Male-Female (SMF), Lap-Joint Face (LJF), Raised Face (RF), Large Male-Female (LMF), Small Tongue.
• Custom design: As per your drawing
• Test: Direct-reading Spectrograph, X-ray detector, UItrasonic flaw detector, Magnetic particle detector, Hydrostatic testing machine.
• Origin: Indian / USA / Korean / West Europe / Japan
• Pressure Class: PN 6 TO PN 100
• Thickness: Normal Pipe Size ≤ 18
• Bore Diameter: Normal Pipe ≤ 10
• High Temperature: Above 200°C (400°F) For Class 150 Or Above 400°C (750°F)
• Low Temperature: Above -29 Degree C (−20°F)
• Coating/Surface Treatment:: Zinc Plated, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized.
• European/African/Russian Standard Flanges: Available
• Gaskets Types: Full Face, Metallic Ring, Flat Ring Gasket
• Marking Standard: Name of Manufacturer
• ScheduleType of Flange Facing
• Pressure ClassNominal Pipe Size, etc
• Test Certificates: EN 10204/3.1B, NACE MR0103, NACE MR0175
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
